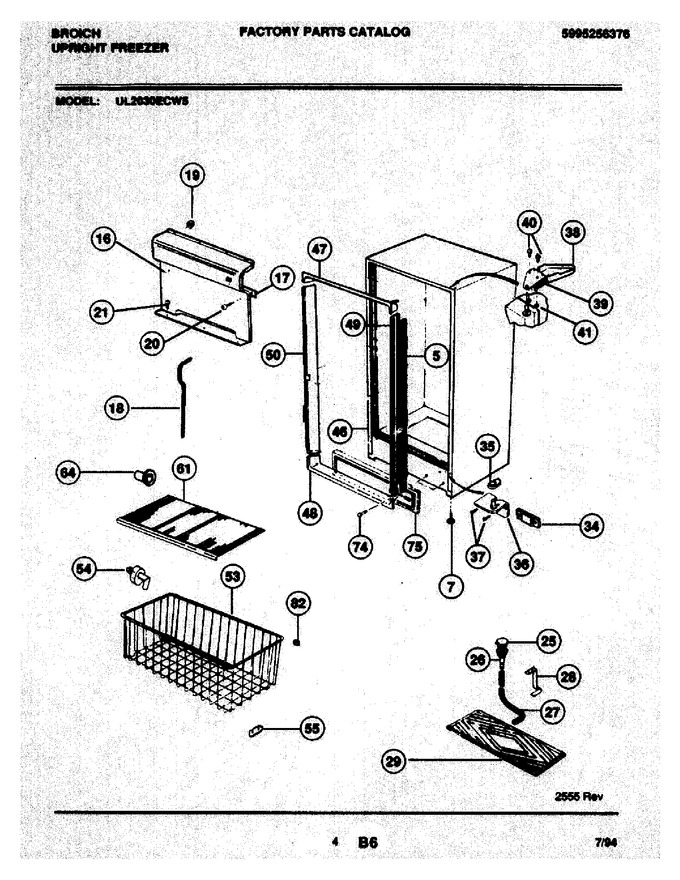

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303925098		Insulation				$ 120.65
7	205363701		Leg Leveler Adj		Appelez-nous	-
16	216084200		Panel-evaporator		Appelez-nous	-
17	06599547		Spacer		Appelez-nous	-
18	216204901		Gasket Panel				$ 9.08
19	09948978		Insert Nut		Appelez-nous	-
20	216858001		Screw-panel To Liner   (Replaces: 5303161215)			Immediately	$ 10.85
21	216283900		Screw-panel To Evaporator		Appelez-nous	-
25	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
26	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
27	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
28	06594637		Clip		Appelez-nous	-
29	5308016387		Defrost Drain Pan		Appelez-nous	-
34	216313300		Tapping Plate-hinge		Appelez-nous	-
35	5303210424		Closer-door		Appelez-nous	-
36	216247400		Hinge-bottom		Appelez-nous	-
37	154518001		Screw-hinge   (Replaces: 5303205738)				$ 10.54
38	5303212912		Cover, Hinge-white		Appelez-nous	-
39	5303212935		Hinge, Top		Appelez-nous	-
40	5303212937		Screw-top Hinge		Appelez-nous	-
41	06594537		Insert, Nut		Appelez-nous	-
46	06594680		Clip, Breaker		Appelez-nous	-
47	216085900		Breaker, Top		Appelez-nous	-
48	216085800		Breaker, Bottom		Appelez-nous	-
49	216107501		Breaker, Hinge Side		Appelez-nous	-
50	216107602		Breaker-lock Side		Appelez-nous	-
53	216154400		Basket		Appelez-nous	-
54	09948791		Stop, Basket		Appelez-nous	-
55	08009560		Glide, Basket				$ 35.25
61	216266900		Shelf-upper		Appelez-nous	-
64	216261100		Support-rear-front		Appelez-nous	-
74	5303302714		Screw-toe Grille		Appelez-nous	-
75	216294408		Toe Grille		Appelez-nous	-
82	5305878546		Bumper, Basket				$ 7.23
	216323100		Lock Catch		Appelez-nous	-
	216267000		Shelf-lower		Appelez-nous	-
