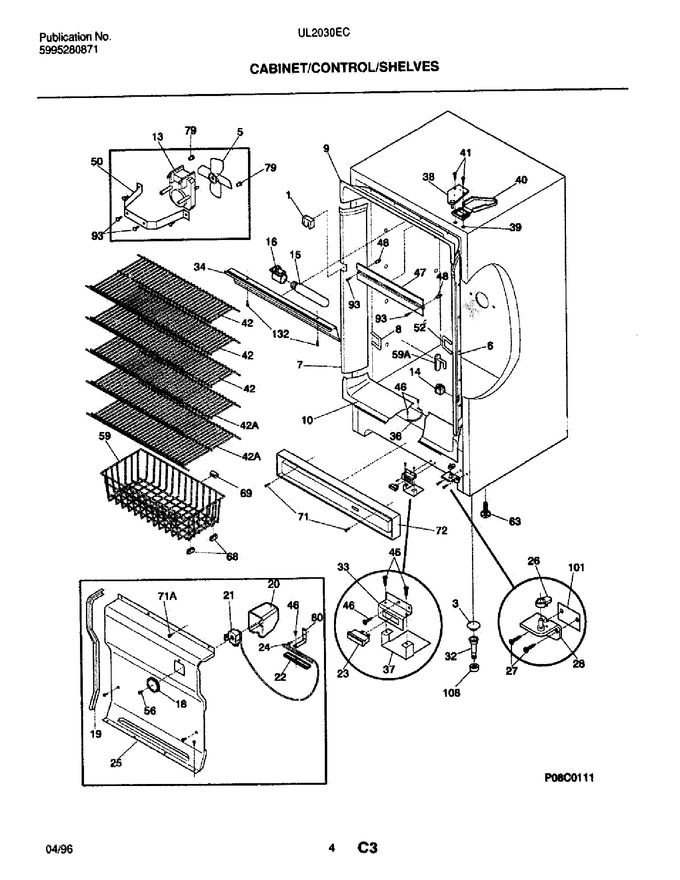

05 - Cabinet/control/shelves
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216323100 | Support, Lock |
|
- | |||||
| 3 | 216503100 | Screen, Drain (Replaces: 5308037403) |
|
$ 62.17 | |||||
| 5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| 6 | 216107501 | Breaker, Hinge Side |
|
- | |||||
| 7 | 216107602 | Breaker-lock Side |
|
- | |||||
| 8 | 216328000 | Clip,u ,lock |
|
- | |||||
| 9 | 216085900 | Breaker, Top |
|
- | |||||
| 10 | 216085800 | Breaker, Bottom |
|
- | |||||
| 13 | 216470200 | Motor-evap Fan |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 16 | 5300136117 | Socket, Light/lamp |
|
$ 52.46 | |||||
| 18 | 216008801 | Knob-control |
|
- | |||||
| 19 | 216204901 | Gasket-cover Evap |
|
$ 9.08 | |||||
| 20 | 216230300 | Cover, Temp Control |
|
$ 49.88 | |||||
| 21 | 216303500 | Control-temperature |
|
- | |||||
| 22 | 05878562 | Clamp |
|
- | |||||
| 23 | 06594648 | Signal Light, Amber |
|
- | |||||
| 24 | 5300052943 | Screw, Clamp |
|
$ 5.30 | |||||
| 25 | 216084200 | Cover, Evaporator |
|
- | |||||
| 26 | 5303210424 | Ramp, Door |
|
- | |||||
| 27 | 216313000 | Screw,10-24x3/4,hinge |
|
- | |||||
| 28 | 216247400 | Hinge-bottom |
|
- | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 33 | 216252001 | Bracket, Signal Light |
|
- | |||||
| 34 | 216312203 | Shield-light,32`` Dec |
|
- | |||||
| 36 | 06594651 | Wire, Ground |
|
- | |||||
| 37 | 216159800 | Cover-indicator Light |
|
- | |||||
| 38 | 5303925086 | Hinge-upper |
|
- | |||||
| 39 | 5303294372 | Nut Insert-hinge |
|
$ 43.68 | |||||
| 40 | 5303212912 | Cover, Hinge |
|
- | |||||
| 41 | 5303212937 | Screw-top Hinge |
|
- | |||||
| 42 | 216266900 | Shelf, Upper (3) |
|
- | |||||
| 46 | 08037851 | Screw |
|
$ 3.57 | |||||
| 47 | 5303288233 | Baffle-plate |
|
- | |||||
| 48 | 08000456 | Spacer Baffle Plate |
|
- | |||||
| 50 | 216394050 | Bracket-motor Mtg Fan (Replaces: 216394000) |
|
$ 22.75 | |||||
| 52 | 08037401 | Retainer, Wire, Breaker |
|
$ 2.85 | |||||
| 56 | 09950853 | Screw, Knob |
|
- | |||||
| 59 | 216154400 | Basket |
|
- | |||||
| 63 | 216396900 | Foot-adjustable |
|
Immediately | $ 38.39 | ||||
| 68 | 08009560 | Glide, Basket |
|
$ 35.25 | |||||
| 69 | 5305878546 | Bumper, Basket |
|
$ 7.23 | |||||
| 71 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 72 | 216294408 | Grille/kickplate |
|
- | |||||
| 79 | 301036 | Nut-insert (Replaces: 3017666) |
|
$ 15.90 | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 101 | 216313300 | Plate-tapping, Hinge |
|
- | |||||
| 108 | 216388600 | Trap-drain |
|
$ 2.36 | |||||
| 132 | 5303283898 | Screw, 6-20ab X 3/8, Shield-light |
|
- | |||||
| 5303207388 | Wire, Ground, Fan Motor |
|
- | ||||||
| 06594680 | Clip, Breaker |
|
- | ||||||
| 5303321319 | Touch-up Paint-white (Replaces: 5303305324) |
|
Immediately | $ 13.46 | |||||
| 42A | 216267000 | Shelf-bottom |
|
- | |||||
| 59A | 09948791 | Stop, Basket |
|
- |
