SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

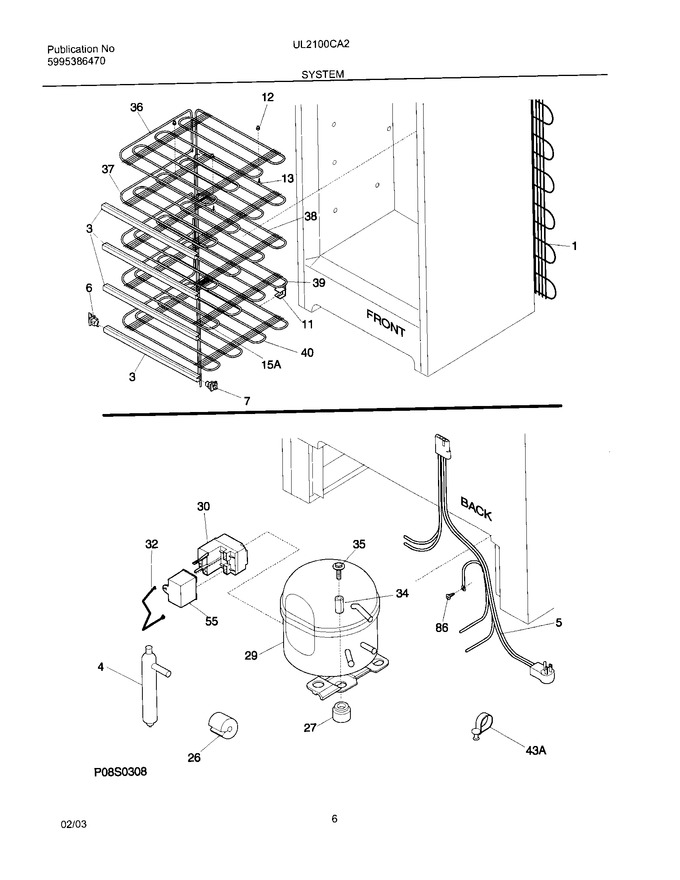

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
3	5304509723		Trim-shelf,decorated,evap   (Replaces: 216847805)				$ 31.81
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216804300		Harness-main		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
26	216511900		Spacer-tube		Appelez-nous	-
27	218513300		Grommet-compr Mtg				$ 42.53
29	5304507766		Compressor,w/o Electricals   (Replaces: 216836600)				$ 810.08
30	5304491941		Controller   (Replaces: 216649316)			Immediately	$ 103.19
32	218740800		Clamp,elec Cont Mtg ,compressor				$ 65.21
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	5304506302		Grid-top Evaporator   (Replaces: 216070900)				$ 324.59
37	5304506302		Shelf-top Evaporator   (Replaces: 216071000)				$ 324.59
38	216071100		Shelf-middle Evaporator		Appelez-nous	-
39	5304506302		Shelf-third Evaporator   (Replaces: 216071200)				$ 324.59
40	5304506302		Shelf-bottom Evaporator   (Replaces: 216071300)				$ 324.59
55	5304464438		Capacitor,run ,50/60 Hz ,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
86	216036600		Screw,ph Wshr Hd,8-32ca X 0.500,thrd Forming		Appelez-nous	-
	240491501		Screw-comp Mtg,hx Wshr Hd,1/4-28x1.16,shld,cf		Appelez-nous	-
	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-
	216502500		Sleeve,suction Line				$ 10.85
	216159300		Cover-wiring		Appelez-nous	-
15A	216401500		Heat Exchanger				$ 294.47
43A	216629700		Clip-harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
