SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

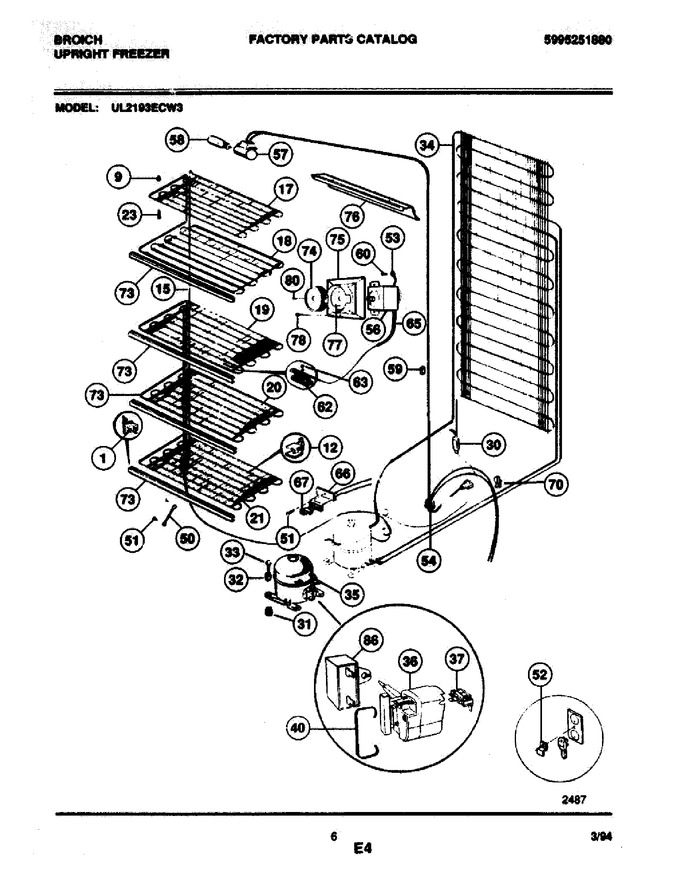

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297001600		Support-front-lh   (Replaces: 3091418)				$ 18.08
1	297001500		Support-front Rh   (Replaces: 08037928)				$ 18.08
9	216225700		Spcr-top Grid-front				$ 7.77
12	216225600		Support-rear		Appelez-nous	-
15	5308010744		Heat Exchanger		Appelez-nous	-
17	5304506302		Top Grid   (Replaces: 216070900)				$ 324.59
18	5304506302		First Shelf   (Replaces: 216071000)				$ 324.59
19	216071100		Second Shelf		Appelez-nous	-
20	5304506302		Third Shelf   (Replaces: 216071200)				$ 324.59
21	5304506302		Bottom Shelf   (Replaces: 216071300)				$ 324.59
23	08013446		Screw Top Grid		Appelez-nous	-
30	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
31	216498900		Grommet   (Replaces: 5308002681)				$ 13.01
32	5306594529		Sleeve				$ 10.34
33	5303272328		Screw				$ 10.34
34	5300083897		Condenser				$ 538.37
35	216241500		Compressor		Appelez-nous	-
36	216008900		Relay		Appelez-nous	-
37	5303206836		Overload		Appelez-nous	-
40	215012000		Clamp, Cover				$ 2.63
50	06594651		Wire, Ground		Appelez-nous	-
51	216159300		Shield-wires		Appelez-nous	-
51	08037851		Screw				$ 3.57
52	08016777		Assy Clamp-service Cord		Appelez-nous	-
53	5300125347		Ground Wire		Appelez-nous	-
54	216233800		Harness W/ Power Cord		Appelez-nous	-
56	216260400		Control-temperature				$ 178.23
57	5300136117		Light Socket				$ 52.46
58	5304517886		Light Bulb   (Replaces: 216222700)			Immediately	$ 73.06
59	08037401		Retainer Harness				$ 2.85
60	08009412		Screw		Appelez-nous	-
62	08037931		Clamp-capillary		Appelez-nous	-
63	5300052943		Screw Capillary Clamp				$ 5.30
65	5308037932		Sleeve, Capillary Tube		Appelez-nous	-
66	216252001		Bracket, Signal Light		Appelez-nous	-
67	06594648		Signal Light, Amber		Appelez-nous	-
70	06599553		Clip, Wires		Appelez-nous	-
73	216260800		Front-shelf		Appelez-nous	-
74	216008602		Knob-control		Appelez-nous	-
75	5303288184		Housing Control		Appelez-nous	-
76	216241605		Light Shield		Appelez-nous	-
77	08003539		Screw Control To Cover		Appelez-nous	-
78	5300050149		Screw Cover To Liner		Appelez-nous	-
80	09950853		Screw, Knob		Appelez-nous	-
86	5304464438		Run Capacitor   (Replaces: 216236200)			Immediately	$ 35.38

    View Diagram in Separate Window       Print Part List
