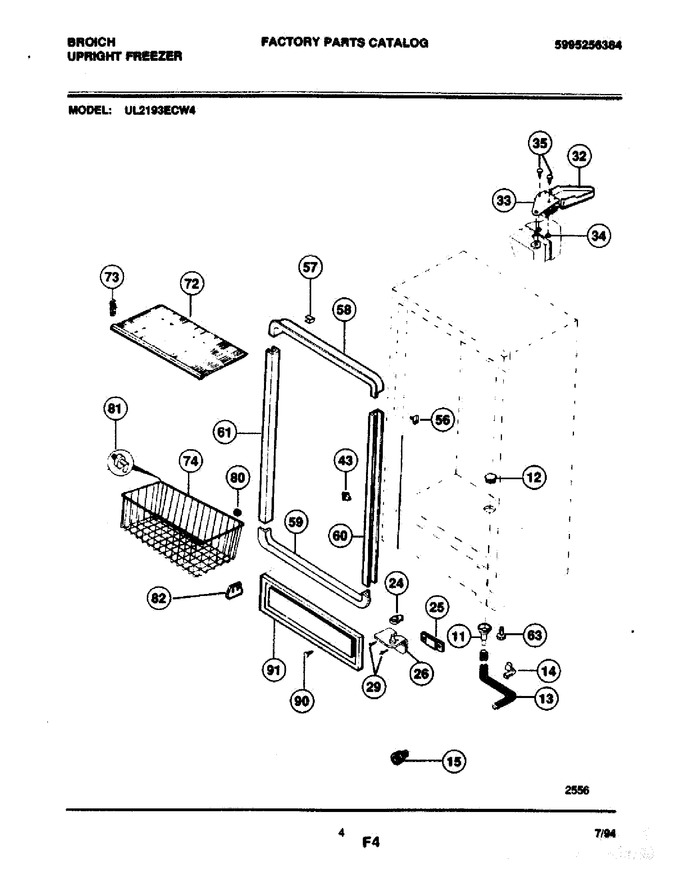

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	216297600		Plug-drain		Appelez-nous	-
13	216269600		Hose-drain		Appelez-nous	-
14	216273000		Clip, Drain Hose				$ 22.42
15	216269500		Hose-adapter				$ 14.81
24	5303210424		Ramp, Door Closer		Appelez-nous	-
25	216313300		Tapping Plate-hinge		Appelez-nous	-
26	216247400		Hinge-bottom		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303212912		Cover, Hinge-white		Appelez-nous	-
33	5303212935		Hinge, Top		Appelez-nous	-
34	5303294372		Nut Insert				$ 43.68
35	5303212937		Screw-top Hinge		Appelez-nous	-
43	5309918806		Switch, Light			Immediately	$ 21.97
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer Top Breaker		Appelez-nous	-
58	216085900		Breaker, Top		Appelez-nous	-
59	216085800		Breaker, Bottom		Appelez-nous	-
60	216107501		Breaker Hinge		Appelez-nous	-
61	216107602		Breaker-lock Side		Appelez-nous	-
61	216323100		Lock Catch		Appelez-nous	-
63	205363701		Leveling Leg Adj		Appelez-nous	-
72	216260600		Dry Shelf		Appelez-nous	-
73	08016352		Support Dry Shelf		Appelez-nous	-
74	216157200		Basket W/o Trim				$ 102.32
80	5305878546		Basket Stop				$ 7.23
81	09948791		Stop, Basket		Appelez-nous	-
82	08009560		Glide, Basket				$ 35.25
90	5303302714		Screw-toe Grille		Appelez-nous	-
91	216294408		Toe Grille		Appelez-nous	-
