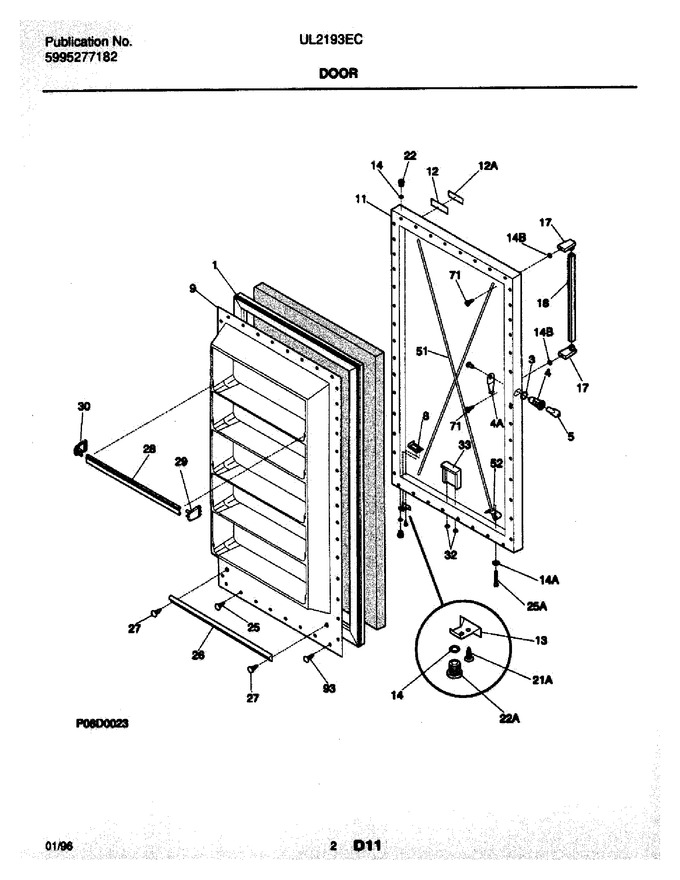

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206261		Gasket Door				$ 254.52
3	5300114366		Washer		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
8	5300091170		Reinforcement, Door Stop		Appelez-nous	-
9	216048801		Panel-inner Door, White, Frzr		Appelez-nous	-
11	216011606		Panel-outer Door, White		Appelez-nous	-
12	5303297073		Bezel,nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
17	3206058		End Cap, White		Appelez-nous	-
18	3206057		Handle,center		Appelez-nous	-
22	5303925197		Bearing				$ 23.73
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216273800		Rack, Shelf, Narrow, White		Appelez-nous	-
29	216334000		End Cap-rh-rack-door, Narrow				$ 47.48
30	216334100		End Cap-lh-rack-door, Narrow				$ 23.39
32	5309950074		Breather-air Duct, Door				$ 12.48
33	5303212700		Air Duct		Appelez-nous	-
51	08037986		Wire, Door Adjustmnt		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
71	08016582		Screw, Hi-lo Blunt, 8-18 X 1/2, Handle		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
	5303925098		Insulation				$ 120.65
12A	5303297032		Insert-bezel		Appelez-nous	-
14A	5303311368		Washer, Flat		Appelez-nous	-
14B	5303307087		Washer		Appelez-nous	-
21A	08005520		Screw-door Stop		Appelez-nous	-
22A	5303210403		Bearing		Appelez-nous	-
25A	216365400		Screw, Adj Wire		Appelez-nous	-
4A	216323600		Hook, Lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
