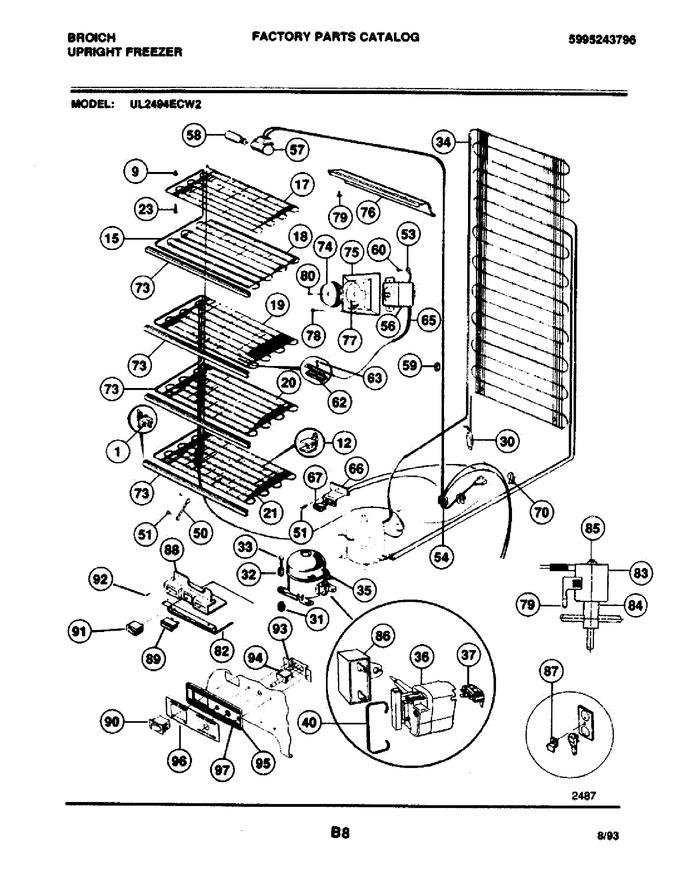

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297001600		Support-front-lh   (Replaces: 3091418)				$ 18.08
1	297001500		Support-front Rh   (Replaces: 08037928)				$ 18.08
9	216225700		Grommet				$ 7.77
12	216225600		Support-rear		Appelez-nous	-
15	5308010744		Heat Exchanger		Appelez-nous	-
17	5304506302		Top Grid   (Replaces: 216070900)				$ 324.59
18	216160100		First Shelf		Appelez-nous	-
19	216071100		Second Shelf		Appelez-nous	-
20	5304506302		Third Shelf   (Replaces: 216071200)				$ 324.59
21	5304506302		Bottom Shelf   (Replaces: 216071300)				$ 324.59
23	216138900		Screw Top Grid				$ 3.31
30	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
31	216498900		Grommet   (Replaces: 5308002681)				$ 13.01
32	5306594529		Sleeve				$ 10.34
33	08002679		Screw		Appelez-nous	-
34	5300089897		External Condenser (not Orig.equip.serv.repl.)		Appelez-nous	-
35	216241500		Compressor		Appelez-nous	-
36	216008900		Relay		Appelez-nous	-
37	5308037789		Overload		Appelez-nous	-
40	215012000		Clamp, Cover				$ 2.63
50	06594651		Wire, Ground		Appelez-nous	-
51	08037851		Screw				$ 3.57
51	216159200		Shieldwires		Appelez-nous	-
52	5303017718		Clamp Service Cord		Appelez-nous	-
53	5300125347		Ground Wire		Appelez-nous	-
54	216234600		Harness		Appelez-nous	-
56	216150400		Control-temp		Appelez-nous	-
57	5300136117		Light Socket				$ 52.46
58	5303091423		Light Bulb		Appelez-nous	-
59	08037401		Retainer Harness				$ 2.85
60	08009412		Screw		Appelez-nous	-
62	08037931		Clamp-capillary		Appelez-nous	-
63	5300052943		Screw Capillary Clamp				$ 5.30
65	5308037932		Sleeve-cap Tube		Appelez-nous	-
66	216009101		Bracket, Signal Light		Appelez-nous	-
70	06599553		Clip, Wires		Appelez-nous	-
71	5303283898		Screw, Shield		Appelez-nous	-
73	216097901		Shelf Trim		Appelez-nous	-
74	216008602		Knob-control		Appelez-nous	-
75	5303288184		Housing Control		Appelez-nous	-
76	216241605		Light Shield		Appelez-nous	-
77	08003539		Screw Control To Cover		Appelez-nous	-
78	5300050149		Screw Cover To Liner		Appelez-nous	-
79	5303297422		Wire-ground		Appelez-nous	-
80	09950853		Screw, Knob		Appelez-nous	-
82	216206600		Harness-alarm		Appelez-nous	-
82	5303297075		Shield		Appelez-nous	-
83	3201514		Solenoid		Appelez-nous	-
84	5303210219		Valve		Appelez-nous	-
85	3201513		Clip, Valve		Appelez-nous	-
86	5304464438		Run Capacitor   (Replaces: 216236200)			Immediately	$ 35.38
87	08016367		Buzzer,alarm		Appelez-nous	-
88	08016369		Bracket		Appelez-nous	-
89	5308002706		Light-signal,amber				$ 39.11
90	5303212703		Switch		Appelez-nous	-
91	5303017178		Switch-spst		Appelez-nous	-
92	08037851		Screw				$ 3.57
93	216009200		Bracket		Appelez-nous	-
94	5303210215		Switch-defrost		Appelez-nous	-
95	216206200		Frame		Appelez-nous	-
96	216206400		Label		Appelez-nous	-
97	5303297123		Screw		Appelez-nous	-
