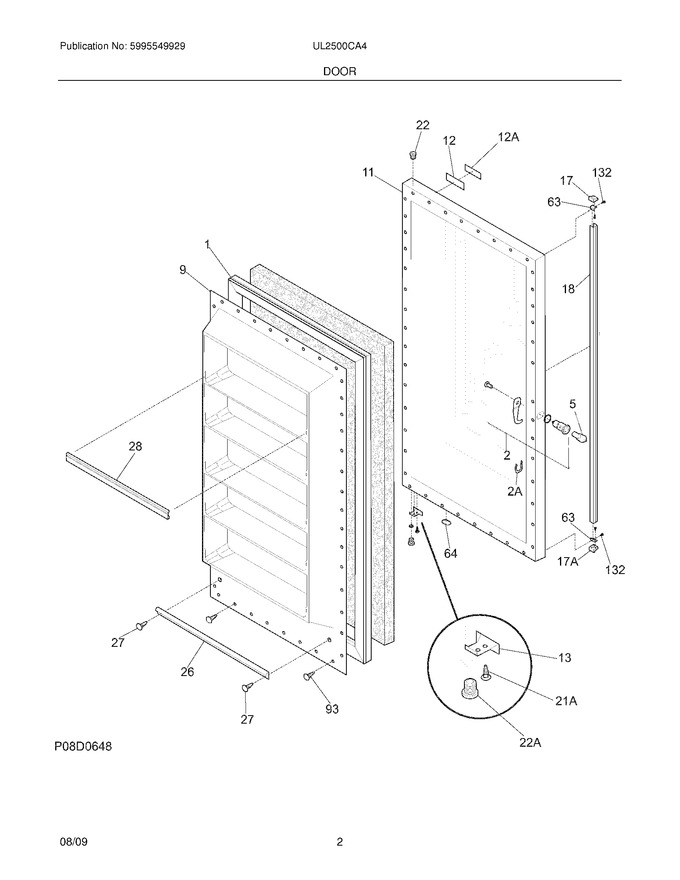

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507199		Gasket-door,white   (Replaces: 216522312)			Immediately	$ 159.60
5	297147700		Key,lock			Immediately	$ 7.57
9	216528113		Panel-inner Door,frzr				$ 231.76
11	297316709		Panel-outer Door,white		Appelez-nous	-
12	297013400		Bezel,nameplate ,white		Appelez-nous	-
13	297257000		Door Stop,chrome ,rh				$ 16.63
17	3206043		End Cap,white ,upper		Appelez-nous	-
18	216923102		Handle		Appelez-nous	-
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary				$ 49.62
27	5304472186		Clip,panel Mtg				$ 11.57
28	216951600		Rack-door,(6)				$ 69.40
63	5300119930		Retainer Handle		Appelez-nous	-
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
132	5304460601		Screw,6-20ab X 3/8		Appelez-nous	-
12A	5303297032		Insert-bezel		Appelez-nous	-
17A	3206044		End Cap,white ,bottom		Appelez-nous	-
21A	297197500		Screw,door Stop Mtg ,fh38-16x.750 ,p Twin				$ 14.46
22A	297006800		Bearing-hinge,btm, W/o`ring				$ 12.29
2A	297213300		Clip,spring				$ 10.17
F2	297318600		Lock Assy   (Replaces: 297213400)				$ 36.87
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
