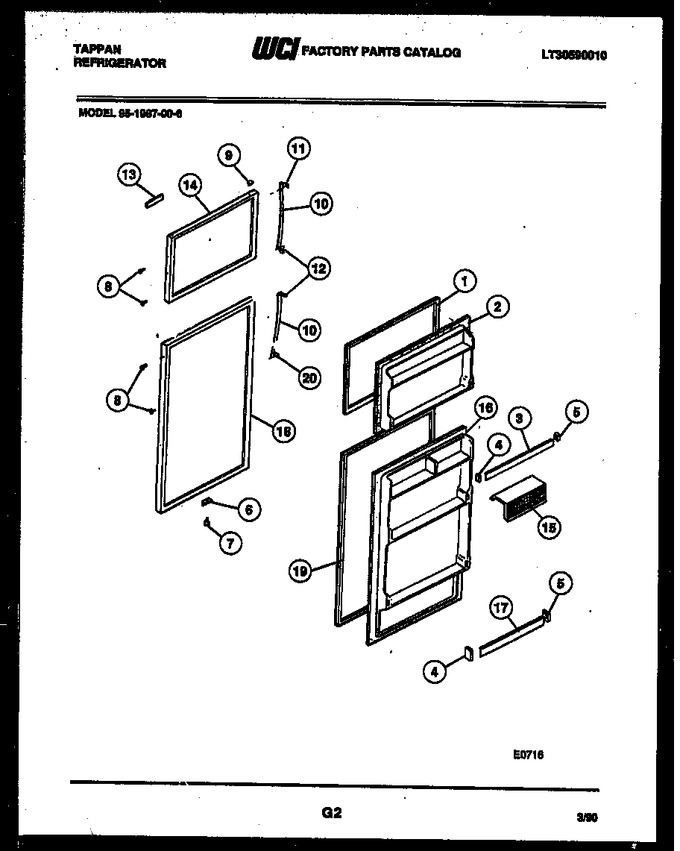

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001486		Gasket-freezer		Appelez-nous	-
2	3001485		Panel-inner		Appelez-nous	-
3	5303001484		Rack-door (2)		Appelez-nous	-
4	5303001411		Support Lh (4)		Appelez-nous	-
5	5303001410		Support Rh (4)		Appelez-nous	-
6	5308000255		Door Stop (2)				$ 42.20
7	5308011745		Screw				$ 10.38
8	5308000178		Button-coffee (8)		Appelez-nous	-
9	5303001657		Button-coffee		Appelez-nous	-
10	3206063		Grip-handle (2)		Appelez-nous	-
11	5303001297		End Cap-top				$ 70.22
12	5303001298		Handle-end (2)		Appelez-nous	-
13	5317116101		Frame-namplate		Appelez-nous	-
14	G178690-10		Panel, Outer, Coffee		Appelez-nous	-
15	5303001415		Dairy Door (2)		Appelez-nous	-
16	5318539701		Panel-inner		Appelez-nous	-
17	5303001418		Rack-door (2)		Appelez-nous	-
18	G178694-10		Panel, Outer, Coffee		Appelez-nous	-
19	5308015544		Gasket-refr Door		Appelez-nous	-
20	5300179801		Handle-end Bottom		Appelez-nous	-
*35342	5303007739		Insulation, Bulk		Appelez-nous	-
12A	5308011745		Screw				$ 10.38
13A	3001024		Label-nameplate (non-illustrated)		Appelez-nous	-
13B	5315340760		Tape-double Face Nameplate (non-illustrated)		Appelez-nous	-
14A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
16A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
18A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
2A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
