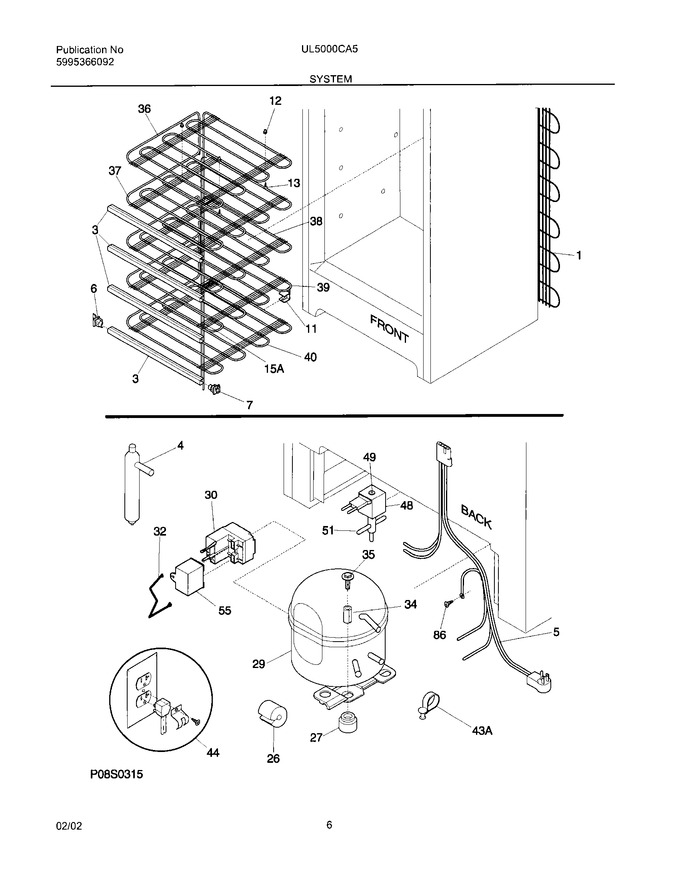

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 3 | 216444800 | Trim-shelf,decorated |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 5 | 216804400 | Harness-main |
|
- | |||||
| 6 | 297001600 | Support-shelf,front Lh (Replaces: 3091418) |
|
$ 18.08 | |||||
| 7 | 297001500 | Support, Shelf, Front Rh (Replaces: 08037928) |
|
$ 18.08 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138900 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
$ 3.31 | |||||
| 26 | 216511900 | Spacer-tube |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 29 | 5304511983 | Compressor,w/o Electricals (Replaces: 216788400) |
|
$ 671.86 | |||||
| 30 | 5304491583 | Controller (Replaces: 216649311) |
|
$ 99.23 | |||||
| 32 | 218740800 | Clamp,elec Cont Mtg ,compressor |
|
$ 65.21 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 36 | 5304506302 | Grid-top Evaporator (Replaces: 216070900) |
|
$ 324.59 | |||||
| 37 | 216160100 | Shelf-top Evaporator |
|
- | |||||
| 38 | 216071100 | Shelf-middle Evaporator |
|
- | |||||
| 39 | 5304506302 | Shelf-third Evaporator (Replaces: 216071200) |
|
$ 324.59 | |||||
| 40 | 5304506302 | Shelf-bottom Evaporator (Replaces: 216071300) |
|
$ 324.59 | |||||
| 44 | 08016777 | Clamp, Pwr Cord Assy |
|
- | |||||
| 48 | 216799800 | Solenoid |
|
- | |||||
| 49 | 216730000 | Screw-solenoid |
|
$ 5.36 | |||||
| 51 | 216750500 | Valve-formed |
|
$ 158.71 | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 35.38 | ||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 09950610 | Clip |
|
- | ||||||
| 5303208622 | Clip Grounding |
|
- | ||||||
| 216762300 | Harness,int |
|
- | ||||||
| 216533400 | Wire-ground,solenoid |
|
- | ||||||
| 216502500 | Sleeve-tube Insert |
|
$ 10.85 | ||||||
| 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | ||||||
| 15A | 216468300 | Heat Exchanger |
|
$ 237.67 | |||||
| 43A | 216629700 | Clip-harness |
|
- |
