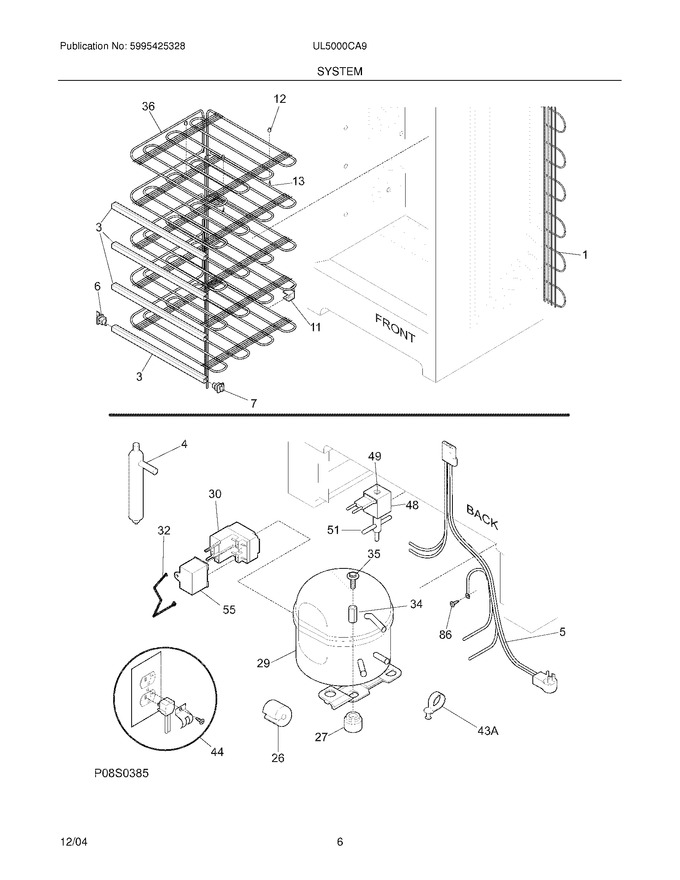

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304509723		Trim-shelf,evaporator ,(3)   (Replaces: 216847806)				$ 31.81
5	216804400		Harness-main		Appelez-nous	-
6	297001600		Support-shelf,front Lh				$ 18.08
7	297001500		Support-shelf,front Rh				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
26	216511900		Spacer Tube, (3)		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	5304491584		Controller,compressor   (Replaces: 216649313)			Immediately	$ 101.35
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
49	216730000		Screw-solenoid				$ 5.36
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
43A	216629700		Clip		Appelez-nous	-
F1	5300083897		Condenser				$ 538.37
F29	216966500		Compressor,w/o Electricals		Appelez-nous	-
F36	216940300		Evaporator,tubing Assy ,white		Appelez-nous	-
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F48	216799800		Solenoid		Appelez-nous	-
F51	216750500		Valve-formed				$ 158.71
F55	218909912		Capacitor-run,220 Vac ,12 Microfarad			Immediately	$ 74.75
NI	216762300		Harness,int		Appelez-nous	-
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-
NI	5303311565		Clip-cable				$ 2.10
NI	09950610		Clip		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 10.85
