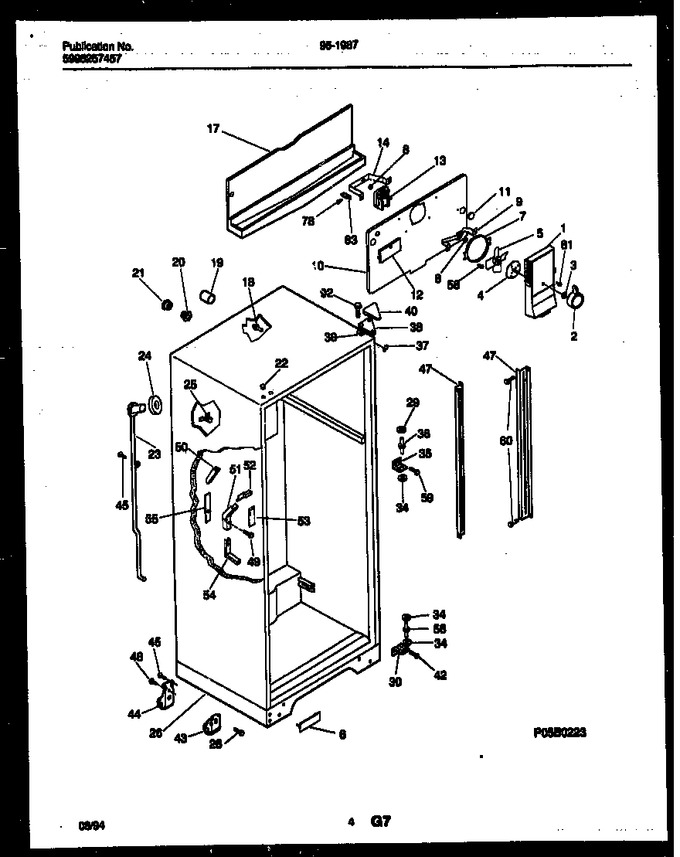

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001496		Cover-fan		Appelez-nous	-
2	5308011762		Knob-damper Control		Appelez-nous	-
3	5303001028		Nut,push-on		Appelez-nous	-
4	5303001331		Damper-fan Cover				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
6	5303001478		Cover-hole, Lower Hinge		Appelez-nous	-
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	5308009771		Cover-evap Coil		Appelez-nous	-
11	5303203044		Plug-hole, Factory Test		Appelez-nous	-
12	5308013636		Plug, Decorative, Ice Maker Hole		Appelez-nous	-
13	5300158289		Motor-evap Fan			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	5303001470		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001678		Plug-button, Wheat, Upr Hinge Holes		Appelez-nous	-
23	5303210377		Tube-drain, W/seal Ring				$ 109.31
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5308000056		Spout-drain Tube				$ 11.66
26	5308010092		Base, Cabinet		Appelez-nous	-
28	5308009761		Bolt-roller Adj, Indt Hx Hd Sems, 1/4-28 X 2-3/4, (2)				$ 18.61
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
30	5303202834		Bracket-lower Hinge				$ 89.41
34	5303001038		Washer, 5/16 X 5/8 Od				$ 13.34
35	5303001369		Bracket-ctr Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202338		Trim-cabinet Corner-wheat		Appelez-nous	-
38	5308012843		Bracket-upper Hinge				$ 71.47
39	5303001037		Shim - Upper Hinge				$ 12.39
40	5303001665		Cover, Upper Hinge, Wheat		Appelez-nous	-
42	241710601		Screw   (Replaces: 5303001479)				$ 13.46
43	5308009760		Roller Assy-front, (2)		Appelez-nous	-
44	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bolt, Roller Mtg, Hx Wshr Hd Mach, 1/4, 28 X 1/2, (2)		Appelez-nous	-
47	5308000302		Channel-shelf Mtg, Side, Refr, (2)		Appelez-nous	-
49	5308016568		Screw-chan/air Duct, Hex Head, 8ab X 1-1/2		Appelez-nous	-
50	5308009765		Insulation-air Duct, Upper		Appelez-nous	-
51	08017510		Duct-meat Keeper (upper)		Appelez-nous	-
52	5303001445		Control-damper, Meat Kpr Duct		Appelez-nous	-
53	3001446		Label-meat Kpr Duct		Appelez-nous	-
10A	5308000126		Nut-``u`` Type No. 8a (non-illustrated)		Appelez-nous	-
38A	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
