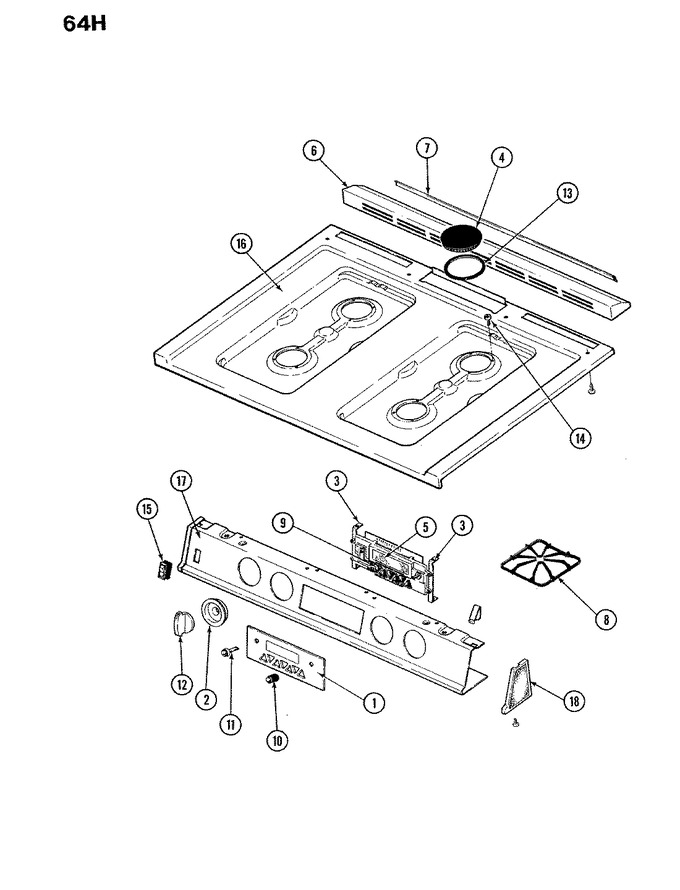

01 - Body Parts
02 - Door Parts
03 - Gas Controls
04 - Manifold Panel - Main Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7720P129-60 | Bezel, Clock-black | 01 |
|
- | ||||
| 1 | 7740P030-60 | Trim Bezel Black | 39 |
|
- | ||||
| 1 | 7720P130-60 | Bezel, Clock | 01 |
|
- | ||||
| 2 | 7740P008-60 | Bezel, Valve Knob-black | 01 |
|
- | ||||
| 3 | 3801F199-45 | Bracket, Clock Mtg | 01 |
|
- | ||||
| 3 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 4 | 3403A019-60 | Cap, Burner Assy | 09 |
|
- | ||||
| 4 | 7504P005-60 | Cap, Burner | 06 |
|
- | ||||
| 4 | 7504P007-60 | Cap, Surface Burner, Black | 13 |
|
- | ||||
| 5 | 7601P158-60CP | Clock (Replaces: 7601P133-60) | 01 |
|
- | ||||
| 5 | 7601P158-60CP | Clock (Replaces: 7601P158-60) | 16 |
|
- | ||||
| 5 | 7601P179-60 | Clock, Electronic | 23 |
|
- | ||||
| 6 | 7724P055-60 | Cover, Vent Trim | 27 |
|
- | ||||
| 6 | 7724P026-60 | Cover, Vent Trim | 01 |
|
- | ||||
| 7 | 7201P040-60 | Gasket, Vent | 01 |
|
- | ||||
| 8 | 5170P094-60 | Wire Harness | 23 |
|
- | ||||
| 8 | Y04000012 | Grate, Burner | 03 |
|
- | ||||
| 8 | 5170P089-60 | Harness, Oven Sensor | 01 |
|
- | ||||
| 8 | 7518P009-60 | Grate, Black | 07 |
|
- | ||||
| 8 | 2003W023-00 | Grate (blk) | 35 |
|
- | ||||
| 8 | Y04000011 | Grate, Burner | 01 |
|
- | ||||
| 8 | 5170P079-60 | Harness, Oven Sensor | 01 |
|
- | ||||
| 8 | 5170P081-60 | Harness, Wire | 01 |
|
- | ||||
| 8 | 5170P095-60 | Harness, Relay | 21 |
|
- | ||||
| 9 | 7711P445-60 | Button, Control Set | 23 |
|
- | ||||
| 9 | 7711P428-60 | Button, Control Sel (blk) | 01 |
|
- | ||||
| 10 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 11 | 7711P446-60 | Knob, Button Clock Set | 23 |
|
- | ||||
| 11 | 7711P433-60 | Button, Clock Set | 01 |
|
- | ||||
| 12 | 7733P032-60 | Knob, Valve (blk) | 01 |
|
- | ||||
| 12 | 7201P041-60 | Pad, Foam Gasket | 01 |
|
- | ||||
| 13 | 2014F001-00 | Ring, Black | 01 |
|
- | ||||
| 14 | 7101P256-60 | Screw | 01 |
|
- | ||||
| 14 | 7214P041-60 | Sleeve, Wire Protector | 01 |
|
- | ||||
| 15 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 01 |
|
$ 91.35 | ||||
| 16 | 2001F102-09 | Top, Main Black | 01 |
|
- | ||||
| 16 | 2001F102-84 | Top, Main (alm) | 01 |
|
- | ||||
| 16 | 2001F070-30 | Top, Main-stainless | 01 |
|
- | ||||
| 16 | WP25-7220 | Clip, Top Retainer (Replaces: 7112P042-60) | 01 |
|
$ 10.77 | ||||
| 16 | 2001F069-81 | Top, Main White | 01 |
|
- | ||||
| 17 | 7712P064-60 | Trim, Manifold-black | 01 |
|
- | ||||
| 18 | 7713P006-60 | Trim, End Cap (lt) | 01 |
|
- | ||||
| 18 | 7713P005-60 | Trim, Manifold Panel End L | 01 |
|
- | ||||
| 18 | 7101P065-60 | Screw | 01 |
|
- |
