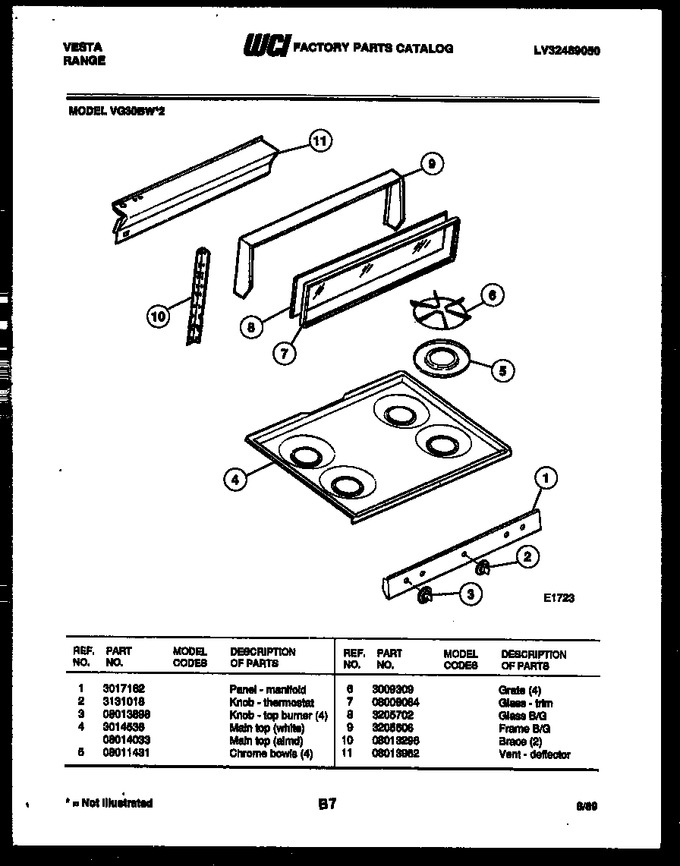

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017162 | Panel-manifold |
|
- | |||||
| 2 | 3131018 | Knob-thermostat |
|
- | |||||
| 3 | 08013898 | Knob - Top Burner (4) |
|
- | |||||
| 4 | 08014033 | Main Top (almd) |
|
- | |||||
| 4 | 3014536 | Main Top (white) |
|
- | |||||
| 5 | 08011431 | Chrome Bowls (4) |
|
- | |||||
| 6 | 3009309 | Grate (4) |
|
- | |||||
| 7 | 08008064 | Glass - Trim |
|
- | |||||
| 8 | 3205702 | Glass B/g |
|
- | |||||
| 9 | 3205606 | Frame B/g |
|
- | |||||
| 10 | 08013296 | Brace (2) |
|
- | |||||
| 11 | 08013962 | Vent - Deflector |
|
- |
