SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - Ice Maker Parts


06 - Ice Maker Installation Parts


07 - System And Automatic Defrost Parts

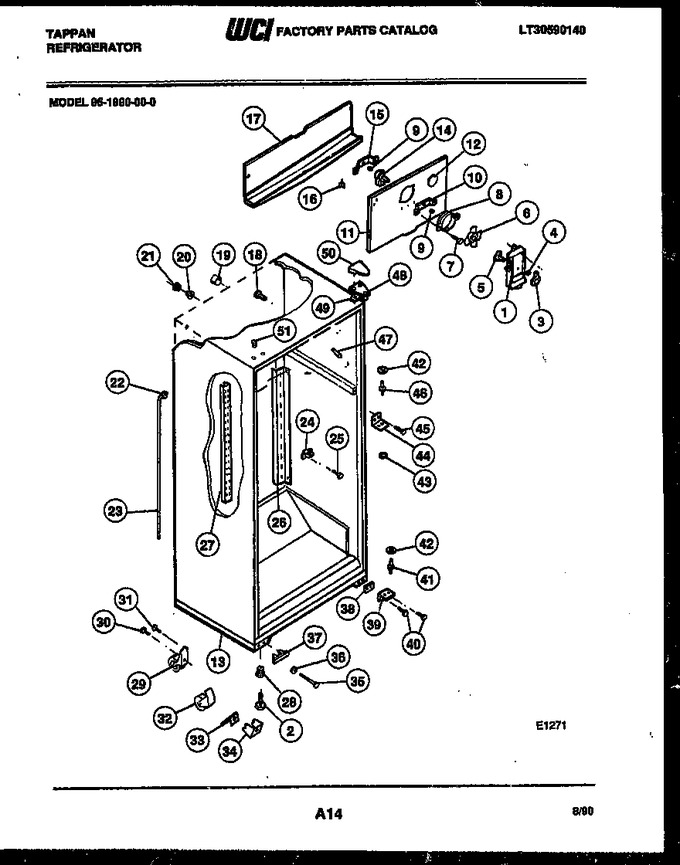

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001496		Cover-fan		Appelez-nous	-
2	5303205540		Screw-level (2)		Appelez-nous	-
3	3001452		Knob-damper Control		Appelez-nous	-
4	5303001028		Push-nut		Appelez-nous	-
5	5303001331		Damper				$ 31.71
6	5308000010		Fan Blade			Immediately	$ 49.03
7	218843801		Screw   (Replaces: 5303001001)				$ 14.41
8	5308000124		Orifice Ring				$ 53.58
9	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
10	5303001226		Bracket-front		Appelez-nous	-
11	5308009771		Cover, Evaporator Coil		Appelez-nous	-
12	5303208309		Plug, Short Test Hole				$ 45.50
13	5308010092		Cabinet Base		Appelez-nous	-
14	5300158289		Motor, Fan			Immediately	$ 149.94
15	5303001227		Bracket-rear		Appelez-nous	-
16	5308000107		Bracket-connector				$ 33.23
17	5303001470		Drain Trough		Appelez-nous	-
18	5308000097		Support, Coil Cover (2)		Appelez-nous	-
19	5303001198		Tube, Rubber (2)		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303207354		Seal Ring-drain Tube		Appelez-nous	-
23	5303210377		Drain Tube & Ring Seal				$ 109.31
24	5308000056		Spout-drain Tube				$ 11.66
25	5303001361		Push-pin Spout (2)		Appelez-nous	-
26	5308000302		Channel-rs & Ls		Appelez-nous	-
28	5308003584		Nut-anchor (2)				$ 7.30
29	5308009773		Roller-rear (2)		Appelez-nous	-
30	5308009762		Bolt 1/4-28 (2)		Appelez-nous	-
31	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
32	5308009760		Roller, Front (2)		Appelez-nous	-
33	5308009790		Spring-roller Adjustment (2)				$ 4.30
34	5308013678		Support-roller (2)		Appelez-nous	-
35	5308009761		Screw-roller Adjustment (2)				$ 18.61
36	5308011326		Washer-nylon (2)				$ 9.87
37	5303001478		Plug, Hinge Hole		Appelez-nous	-
38	5303001323		Shim, Bottom Hinge		Appelez-nous	-
39	5303202834		Bracket, Bottom Hinge				$ 89.41
40	5303001320		Screw-hinge Mtg (2)		Appelez-nous	-
41	5303001321		Pin, Bottom Hinge				$ 17.25
42	5308000007		Washer, 1/4 Nylon (2)		Appelez-nous	-
43	5308000186		Washer, Nylon			Immediately	$ 6.02
44	5303001369		Bracket- Center Hinge		Appelez-nous	-
45	5308012258		Screw				$ 2.25
46	5308000184		Pin-center Hinge				$ 8.87
47	5303202337		Corner Trim - Avocado		Appelez-nous	-
47	5303202339		Corner Trim - Coffee		Appelez-nous	-
47	5303202338		Corner Trim, Wheat		Appelez-nous	-
47	5303202340		Corner Trim-almond		Appelez-nous	-
47	5303202336		Corner-trim (white)		Appelez-nous	-
48	5308012843		Hinge-top				$ 71.47
49	5303001037		Shim, Top Hinge				$ 12.39
50	5308012933		Hinge Cover, Almond		Appelez-nous	-
50	5303001665		Hinge Cover, Wheat		Appelez-nous	-
50	5308012820		Hinge Cover, White		Appelez-nous	-
50	5303001666		Hinge Cover, Coffee		Appelez-nous	-
50	5303001664		Hinge Cover, Avocado		Appelez-nous	-
51	5303001389		Plug-almond		Appelez-nous	-
51	5303001388		Plug, White				$ 2.60
51	5303001677		Plug-avocado		Appelez-nous	-
51	5303001678		Plug, Wheat		Appelez-nous	-
51	5303001679		Plug, Coffee		Appelez-nous	-
*89317	5308016571		Plug-freezer Liner (2)				$ 4.79
11A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
11B	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
16A	5303210353		Screw-bracket Mtg (non-illustrated)		Appelez-nous	-
1A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
23A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
26A	5308010253		Screw-channel (6) (non-illustrated)		Appelez-nous	-
40A	5308012296		Tapping Plate (2) (non-illustrated)				$ 47.44
48A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
48B	5308012296		Plate-tapping (2) (non-illustrated)				$ 47.44

    View Diagram in Separate Window       Print Part List
