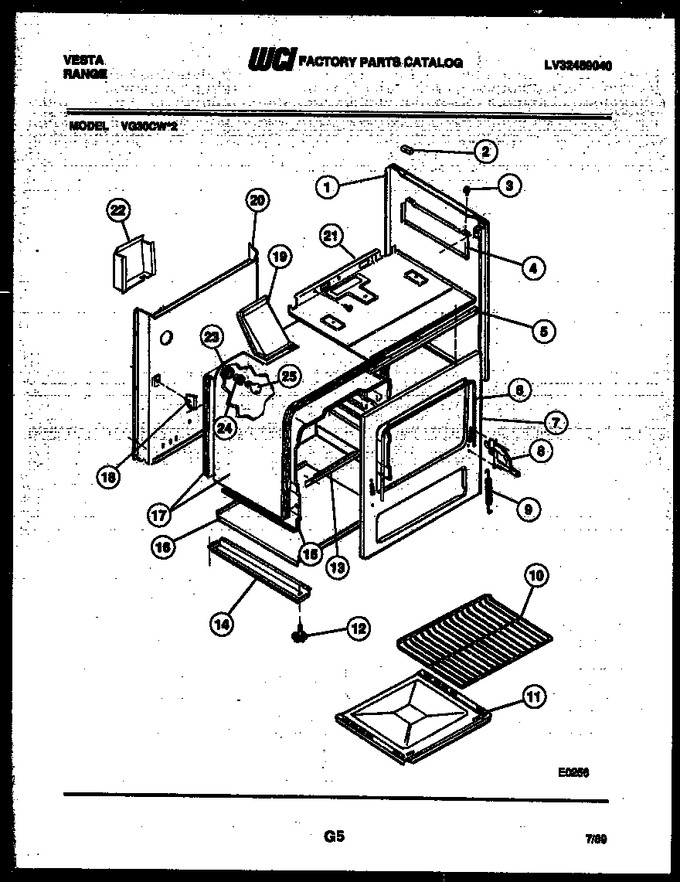

SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Broiler Drawer Parts


05 - Door Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051061		Pnl - B/s (white)		Appelez-nous	-
2	3016129		Grommet-top Rear (4)		Appelez-nous	-
3	3051063		Grommet-top Front (2)		Appelez-nous	-
4	3131053		Shield - Heat Rh		Appelez-nous	-
5	3131811		Support Control Pnl		Appelez-nous	-
6	08008022		Seal - Door		Appelez-nous	-
7	3205578		Frame - Front		Appelez-nous	-
8	3204670		Hinge - Door Rh		Appelez-nous	-
9	08008028		Spring (2)		Appelez-nous	-
10	3015714		Rack (2)		Appelez-nous	-
11	3018282		Panel - Bottom		Appelez-nous	-
12	3051080		Screw - Levelling (4)		Appelez-nous	-
13	3131038		Support-oven Bottom		Appelez-nous	-
14	08068047		Rail - Base (2)		Appelez-nous	-
15	3018284		Liner - Side Rh		Appelez-nous	-
16	3011645		Bottom-oven		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3051096		Support-oven Rear (2)		Appelez-nous	-
19	3017173		Vent - Flue		Appelez-nous	-
20	3013340		Back-main		Appelez-nous	-
21	3017174		Burner Box Bottom		Appelez-nous	-
22	08008357		Cover - Spark Module		Appelez-nous	-
23	3051511		Cup, Oven Light				$ 60.22
24	3131807		Recept - Oven Light		Appelez-nous	-
25	3013071		Bulb-light		Appelez-nous	-
15A	3018285		Liner - Side Lh		Appelez-nous	-
15B	3018347		Liner - Top		Appelez-nous	-
15C	3018286		Liner-back		Appelez-nous	-
17A	3017172		Insulation - Back		Appelez-nous	-
1A	08014019		Body Side Panel (almond)		Appelez-nous	-
21A	3934059		Anti - Tip Bracket (non-illustrated)		Appelez-nous	-
21B	3131791		Clip - B/s Cover (non-illustrated)				$ 19.01
4A	3131054		Shield - Heat Lh		Appelez-nous	-
8A	3204672		Hinge - Door Lh		Appelez-nous	-
