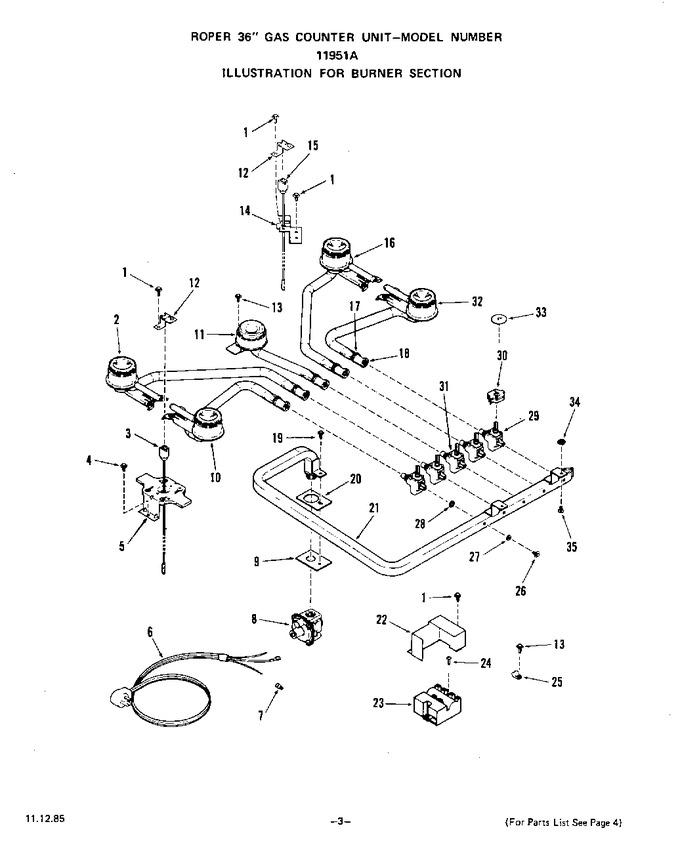

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 102429 | Screw 10 - 32 X 3/8`` |
|
- | |||||
| 2 | 310301 | Lt. Rear Top Burner (inc. Keys 17 & 18) |
|
- | |||||
| 3 | 312454 | Right |
|
- | |||||
| 3 | 312455 | Left |
|
- | |||||
| 4 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 5 | 310290 | Right |
|
- | |||||
| 5 | 311501 | Left |
|
- | |||||
| 6 | 309854 | Cord W/plug |
|
- | |||||
| 7 | 66763 | Wire Connector |
|
Immediately | $ 662.32 | ||||
| 8 | 324529 | Pressure Regulator |
|
- | |||||
| 9 | 312735 | Seal-manifold |
|
- | |||||
| 10 | 310303 | Lt. Front Top Burner (inc. Keys 17 & 18) |
|
- | |||||
| 11 | 329757 | Griddle Top Burner (inc. Keys 17 & 18) |
|
- | |||||
| 12 | 312453 | Bracket-spark Igniter (3 Req) |
|
- | |||||
| 13 | 295850 | Screw 10 - 32 X 7/16`` |
|
- | |||||
| 14 | 325558 | Support-griddle Electrode |
|
- | |||||
| 15 | 312598 | Electrode-spark Igniter (griddle) |
|
- | |||||
| 16 | 310300 | Rt. Rear Top Burner (inc. Keys 17 & 18) |
|
- | |||||
| 17 | 310911 | Adjustment Screw-air Shutter |
|
- | |||||
| 18 | 310910 | Air Shutter |
|
Immediately | $ 36.69 | ||||
| 19 | 102430 | Screw 10 - 32 X 1/2`` |
|
- | |||||
| 20 | 312736 | Retainer-manifold Seal |
|
- | |||||
| 21 | 323389 | Manifold Pipe |
|
- | |||||
| 22 | 325855 | Wire Cover-module |
|
- | |||||
| 23 | 321965 | Module-spark Igniter |
|
- | |||||
| 24 | 327621 | Screw 6-20x3/8`` |
|
- | |||||
| 25 | 109266 | Clamp-nylon |
|
- | |||||
| 26 | 311455 | Mounting Screw (5 Required-inc. Key 27) |
|
- | |||||
| 27 | 304241 | Rubber Gasket (5 Required) |
|
- | |||||
| 28 | 313563 | Rubber Gasket (5 Required) |
|
- | |||||
| 29 | 313224 | Gas Valve (4 Required-inc. Key 28) |
|
- | |||||
| 30 | 311389 | Switch-valve (5 Required) |
|
- | |||||
| 31 | 315190 | Gas Valve-griddle (inc. Key 28) |
|
- | |||||
| 32 | 310302 | Rt. Front-top Burner (inc. Keys 17 & 18) |
|
- | |||||
| 33 | 306589 | Shield-top Burner Valve (5 Required) |
|
- | |||||
| 34 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 35 | 321995 | Spark Igniter Module To Cord W/plug (black-1 Req) |
|
- | |||||
| 35 | 238833 | Screw 8-32 X 3/8`` |
|
- | |||||
| 35 | 313143 | Spark Igniter Module To Valve Switches (yellow-1 Req) |
|
- | |||||
| 35 | 310032 | Spark Igniter Module To Cord W/plug (green)-1 Req. |
|
- | |||||
| 35 | 313144 | Valve Switches To Cord W/plug (black) 1 Req. |
|
- |
