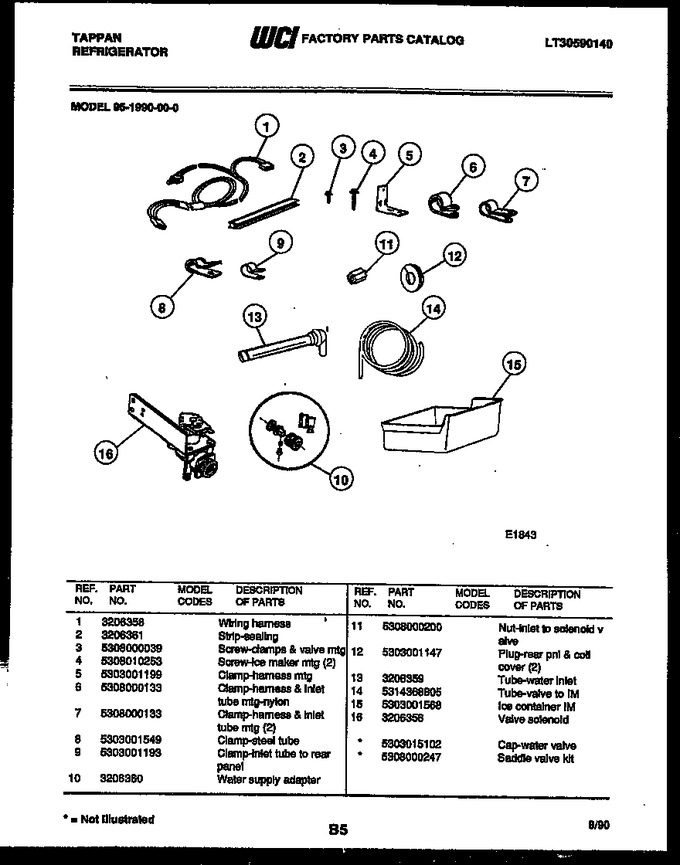

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - Ice Maker Parts
06 - Ice Maker Installation Parts
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206358 | Wiring Harness |
|
- | |||||
| 2 | 3206361 | Strip-sealing |
|
- | |||||
| 3 | 5308000039 | Screw |
|
- | |||||
| 4 | 5308010253 | Screw-ice Maker Mtg (2) |
|
- | |||||
| 5 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 6 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 7 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 8 | 5304455846 | Clamp-steel Tube (Replaces: 5303001549) |
|
$ 10.63 | |||||
| 9 | 5303001193 | Clamp-inlet Tube To Rear Panel |
|
$ 16.30 | |||||
| 10 | 3206360 | Water Supply Adapter |
|
$ 94.66 | |||||
| 11 | 5308000200 | Nut-inlet To Solenoid Valve |
|
- | |||||
| 12 | 5303001147 | Plug-rear Pnl & Coil Cover (2) |
|
$ 22.30 | |||||
| 13 | 3206359 | Tube-water Inlet |
|
- | |||||
| 14 | 5314368805 | Tube - Valve To I/m |
|
- | |||||
| 15 | 5303001568 | Ice Container Im |
|
- | |||||
| 16 | 3206356 | Valve-solenoid |
|
- | |||||
| *89501 | 5303015102 | Cap-water Valve |
|
- | |||||
| *89503 | 65801LF | Saddle-valve Kit (Replaces: 5308000247) |
|
Immediately | $ 8.27 |
