Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 356381 Cap, Agitator Appelez-nous -
2 WP358237 Screw & Washer, Tub (5/16-24 X 3/4) (3)   (Replaces: 370571) In-Stock Immediately $ 7.97

3 367200 Agitator Appelez-nous -
4 387167 Shield, Tub Ring Appelez-nous -
5 387170 Tub Ring (includes Illus. 22 & 23) Appelez-nous -
6 384477 Filter Special Order $ 60.67

7 356141 Clip, Tub Ring (5) Appelez-nous -
8 356380 Gasket, Tub Ring Appelez-nous -
10 356995 Locknut Appelez-nous -
11 357836 Block, Basket Drive Appelez-nous -
12 359174 Basket Assembly Appelez-nous -
14 WP285655 Clamp, Hose   (Replaces: 272858) In-Stock Immediately $ 7.55

15 W10814296 Gasket, Centerpost   (Replaces: 96690) In-Stock Immediately $ 8.26

16 360804 Air Dome Assembly Appelez-nous -
17 351830 Seal Special Order $ 5.84

18 356201 Funnel, Drain Appelez-nous -
19 357160 Manifold, Tub Outlet Appelez-nous -
20 367162 Tub Appelez-nous -
22 356398 Tube, Drain Off Special Order $ 71.61

23 8577411 Clip (2)   (Replaces: 352155) Special Order $ 7.25

29 WP358237 Screw & Washer   (Replaces: 358237) In-Stock Immediately $ 7.97

30 285150 Manifold Repair Kit (this Kit Eliminates The Need To Remove The Tub From The Compact Washer When Cle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

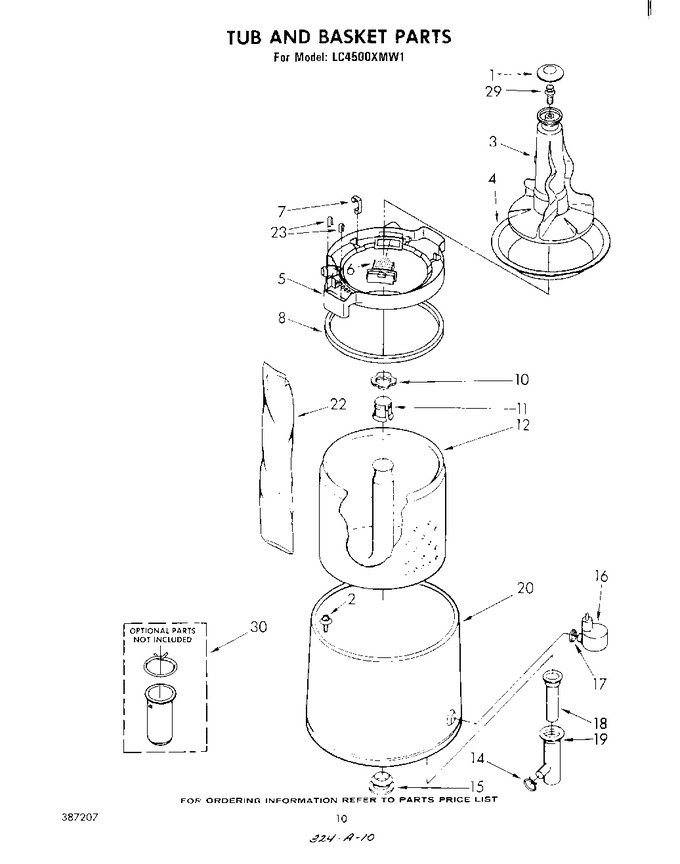

Diagram for LC4500XMW1
