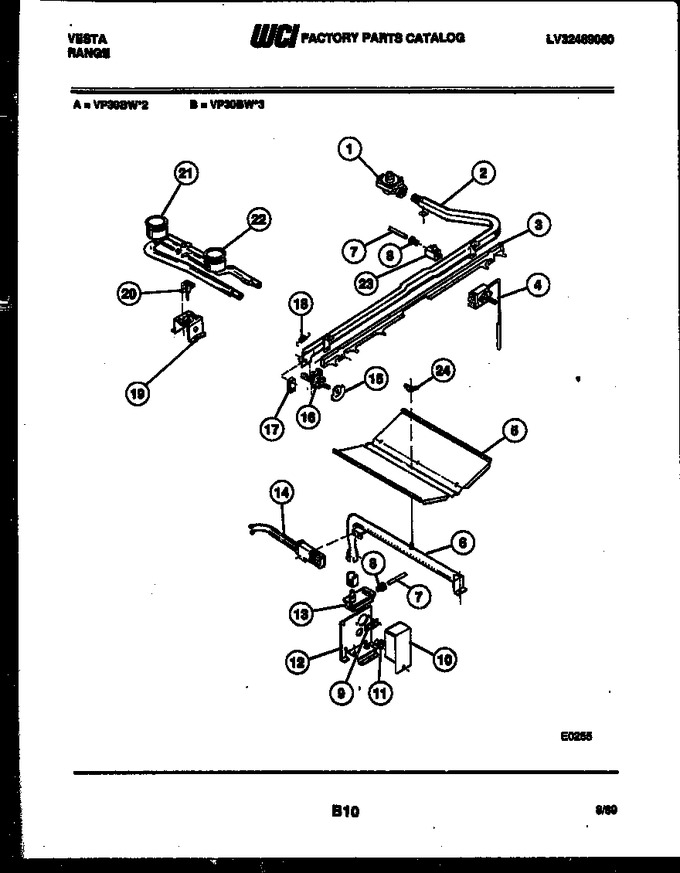

02 - Backguard And Cooktop Parts
03 - Broiler Drawer Parts
04 - Door Parts
05 - Burner Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007974 | Pressure Regulator |
|
- | |||||
| 2 | 08013906 | Manifold |
|
- | |||||
| 3 | 3131856 | Slide Bar |
|
- | |||||
| 4 | 08013926 | Thermostat |
|
- | |||||
| 5 | 3131061 | Baffle-oven Burner |
|
- | |||||
| 6 | 3202752 | Burner - Oven |
|
- | |||||
| 7 | 3009495 | Tube - 3/8 Feed |
|
- | |||||
| 8 | AP269017 | Nut - 3/8 Loxit |
|
- | |||||
| 9 | 3131087 | Terminal Block |
|
- | |||||
| 10 | 3131088 | Cvr-ov Safety Valve |
|
- | |||||
| 11 | 3051101 | Snap - Bushing |
|
- | |||||
| 12 | 3131069 | Sprt-ov Safety Valve |
|
- | |||||
| 13 | 08009419 | Valve - Safety |
|
- | |||||
| 14 | 12400035 | Igniter-oven\ (Replaces: 08009420) |
|
Immediately | $ 60.44 | ||||
| 15 | 3131091 | Cam - Valve (4) |
|
- | |||||
| 16 | 3131057 | Valve - Top Burner (4) |
|
- | |||||
| 17 | 08013925 | Micro - Switch |
|
- | |||||
| 18 | 3131096 | Spring - Slide |
|
- | |||||
| 19 | 3203964 | Support - Top Burner |
|
- | |||||
| 20 | 3207970 | Igniter - Top Brnr 36`` |
|
- | |||||
| 21 | 3131079 | Burner - Top Rear |
|
- | |||||
| 22 | 3131080 | Burner - Top Front |
|
- | |||||
| 23 | 3131099 | Valve - Shut Off |
|
- | |||||
| 24 | 08007979 | Nut - Wing |
|
- | |||||
| 4A | AP00091011 | Clip - Capillary Bulb (non-illustrated) |
|
- |
