View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

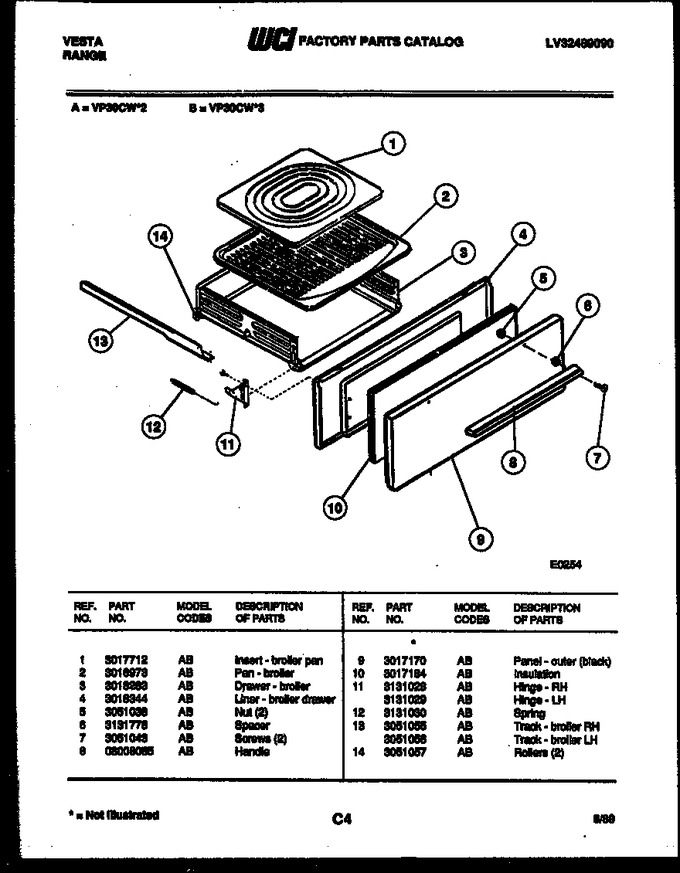

| 1 | 3017712 | Insert-broiler Pan |
|
- | |||||
| 2 | 3016973 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Drawer Broiler |
|
- | |||||
| 4 | 3018344 | Liner - Broiler Drawer |
|
- | |||||
| 5 | 3051038 | Nut (2) |
|
- | |||||
| 6 | 3131778 | Spacer |
|
- | |||||
| 7 | 3051043 | Screws (2) |
|
- | |||||
| 8 | 08008085 | Handle |
|
- | |||||
| 9 | 3017170 | Panel - Outer Black |
|
- | |||||
| 10 | 3017184 | Insulation |
|
- | |||||
| 11 | 3131028 | Hinge - Rh |
|
- | |||||
| 12 | 3131030 | Spring |
|
- | |||||
| 13 | 3051055 | Track - Broiler Rh |
|
- | |||||
| 14 | 3051057 | Rollers (2) |
|
- | |||||
| 11A | 3131029 | Hinge - Lh |
|
- | |||||
| 13A | 3051056 | Track - Broiler Lh |
|
- |
