SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - System

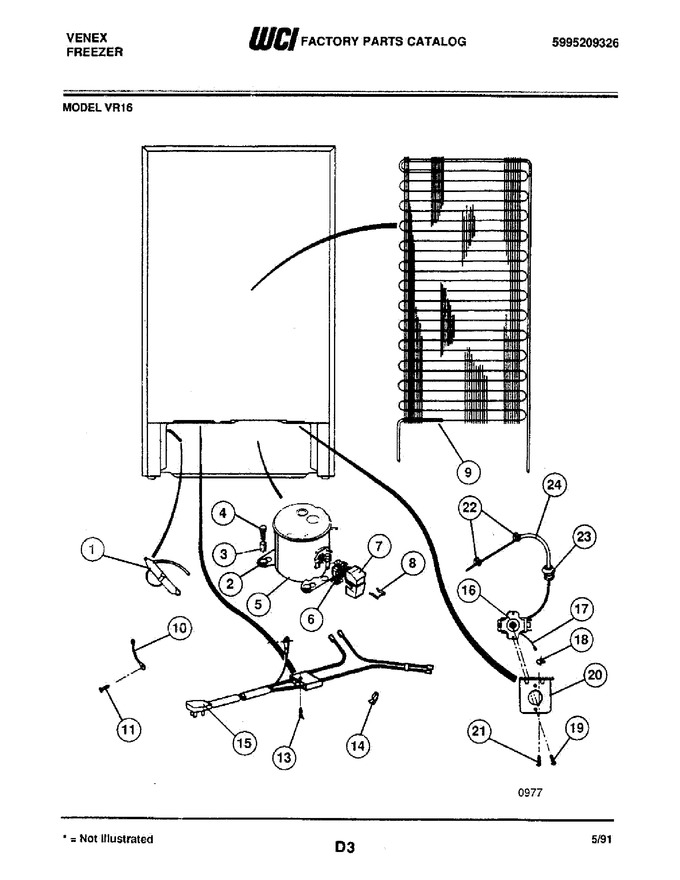

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
2	216498900		Grommet   (Replaces: 5308002681)				$ 13.01
3	5306594529		Sleeve				$ 10.34
4	5303272328		Screw, Compressor				$ 10.34
5	5300186042		Compressor		Appelez-nous	-
6	5303200841		Overload/relay		Appelez-nous	-
7	08016583		Cover-terminal		Appelez-nous	-
8	08016584		Clamp Cover		Appelez-nous	-
9	5300083897		Condenser				$ 538.37
10	06594651		Wire, Ground		Appelez-nous	-
11	08037851		Screw-ground				$ 3.57
13	08009384		Screw Strain Relief		Appelez-nous	-
14	09950610		Clip		Appelez-nous	-
15	5303276525		Harness-electrical		Appelez-nous	-
16	3200802		Control Temp		Appelez-nous	-
18	5303208622		Clip Grounding		Appelez-nous	-
19	08003539		Screw Control To Bracket		Appelez-nous	-
20	5308016760		Bracket-control		Appelez-nous	-
22	3200804		Support Control Cap Tube		Appelez-nous	-
23	3200805		Plug Cap Tube		Appelez-nous	-
24	5303916855		Sleeve Control Cap Tube				$ 60.96

    View Diagram in Separate Window       Print Part List
