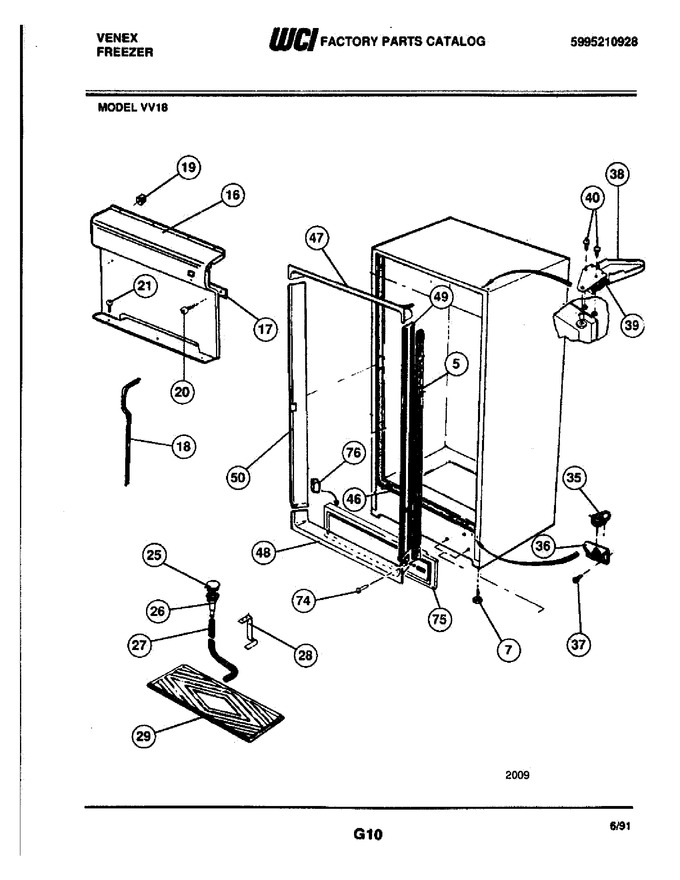

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303925098		Insulation 1/2``x 2``				$ 120.65
5	3205376		Insulation 1``x 5``		Appelez-nous	-
7	5303205540		Leg Leveler		Appelez-nous	-
16	06599550		Panel-evaporator		Appelez-nous	-
17	06599547		Spacer		Appelez-nous	-
18	5303212723		Gasket Panel		Appelez-nous	-
19	08009611		Insert Nut		Appelez-nous	-
20	216858001		Screw-panel To Liner   (Replaces: 5303161215)			Immediately	$ 10.85
21	5303161233		Screw-panel To Evap		Appelez-nous	-
25	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
26	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
27	08037416		Hose		Appelez-nous	-
28	06594637		Clip		Appelez-nous	-
29	5308016387		Defrost Pan		Appelez-nous	-
30	3206147		Guard		Appelez-nous	-
31	216858001		Screw-guard   (Replaces: 5303161215)			Immediately	$ 10.85
36	5303210383		Hinge, Bottom		Appelez-nous	-
37	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
38	5303276520		Cover-hinge-white		Appelez-nous	-
39	5303212935		Plate-hinge Top		Appelez-nous	-
40	5303212937		Screw-top Hinge		Appelez-nous	-
40	08037937		Spacer Top Breaker		Appelez-nous	-
46	06594680		Clip, Breaker		Appelez-nous	-
47	06594561		Breaker, Top		Appelez-nous	-
48	06594562		Breaker, Bottom		Appelez-nous	-
49	08037972		Breaker-hinge Side		Appelez-nous	-
50	5303208891		Breaker-lock Side		Appelez-nous	-
74	5309950066		Pin Base Trim		Appelez-nous	-
75	3206037		Toe Grille		Appelez-nous	-
76	5300118003		Bumper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
