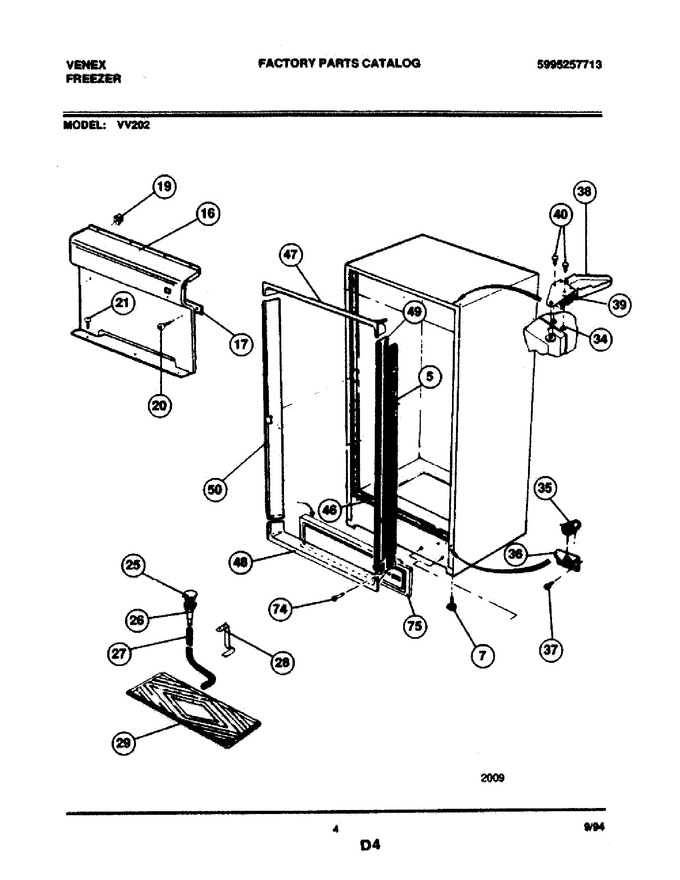

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	3205376		Insulation 1``x 5``		Appelez-nous	-
5	5303925098		Insulation				$ 120.65
7	205363701		Leg Leveler Adj		Appelez-nous	-
16	216084200		Panel-evaporator		Appelez-nous	-
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
19	08009611		Insert Nut		Appelez-nous	-
20	216283900		Screw-support		Appelez-nous	-
21	131168200		Screw			Immediately	$ 14.18
25	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
26	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
27	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
28	06594637		Clip		Appelez-nous	-
29	5308016387		Pan-defrost		Appelez-nous	-
34	5303294372		Nut-insert (2)				$ 43.68
35	5300091170		Reinforcement, Door Stop		Appelez-nous	-
36	5303210383		Hinge, Bottom		Appelez-nous	-
37	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
38	5303212912		Cover, Hinge-white		Appelez-nous	-
39	5303212935		Plate-hinge Top		Appelez-nous	-
40	08037937		Spacer Top Breaker		Appelez-nous	-
40	5303212937		Screw-top Hinge		Appelez-nous	-
46	06594680		Clip, Breaker		Appelez-nous	-
47	216685900		Harness-lid/defrost		Appelez-nous	-
48	216085800		Breaker, Bottom		Appelez-nous	-
49	216107500		Breaker, Hinge Side		Appelez-nous	-
50	216107600		Breaker, Lock Side		Appelez-nous	-
74	5303302714		Screw-toe Grille (2)		Appelez-nous	-
75	216294400		Toe Grille				$ 179.26
	5308016387		Pan-defrost		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
