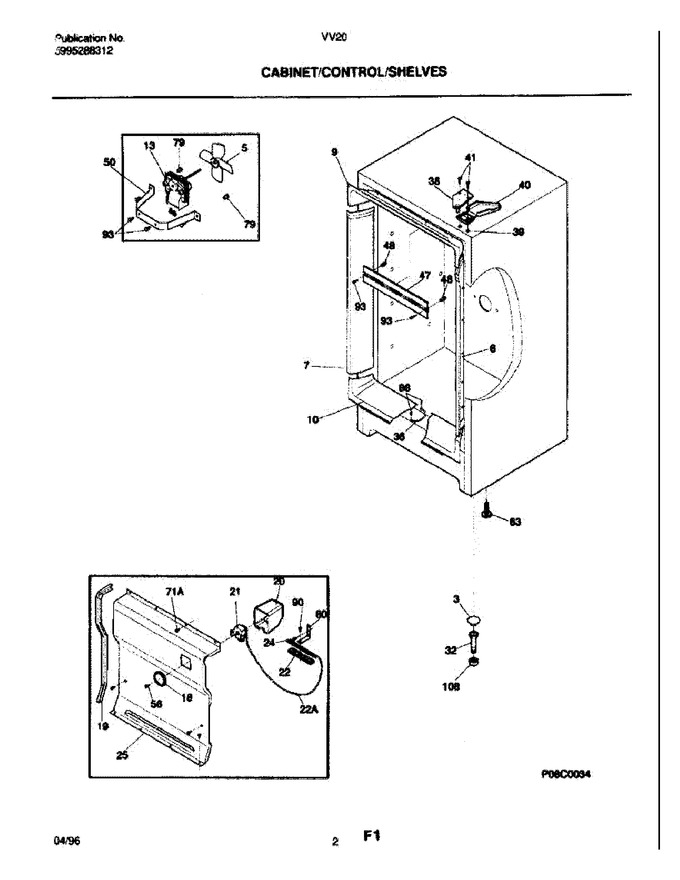

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216107500		Breaker, Hinge Side		Appelez-nous	-
7	216107600		Breaker, Lock Side		Appelez-nous	-
9	216085900		Breaker, Top		Appelez-nous	-
10	216085800		Breaker, Bottom		Appelez-nous	-
13	216470200		Motor-evap Fan		Appelez-nous	-
18	216008801		Knob-control		Appelez-nous	-
19	216204901		Gasket-cover Evap				$ 9.08
20	216230300		Cover, Temp Control				$ 49.88
21	216303500		Control-temperature		Appelez-nous	-
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw, Clamp				$ 5.30
25	216084200		Cover, Evaporator		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
63	216396900		Foot-adjustable			Immediately	$ 38.39
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
90	5303297123		Screw, Th, 8-32 X 2-1/2		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
108	216388600		Trap-drain				$ 2.36
	5303321319		Touch-up Paint-white   (Replaces: 5303305324)			Immediately	$ 13.46
	5303207388		Wire, Ground, Fan Motor		Appelez-nous	-
	06594680		Clip, Breaker		Appelez-nous	-
22A	5303916855		Tube, Insulator, Plastic, On Temp Sensor				$ 60.96
71A	131168200		Screw			Immediately	$ 14.18
