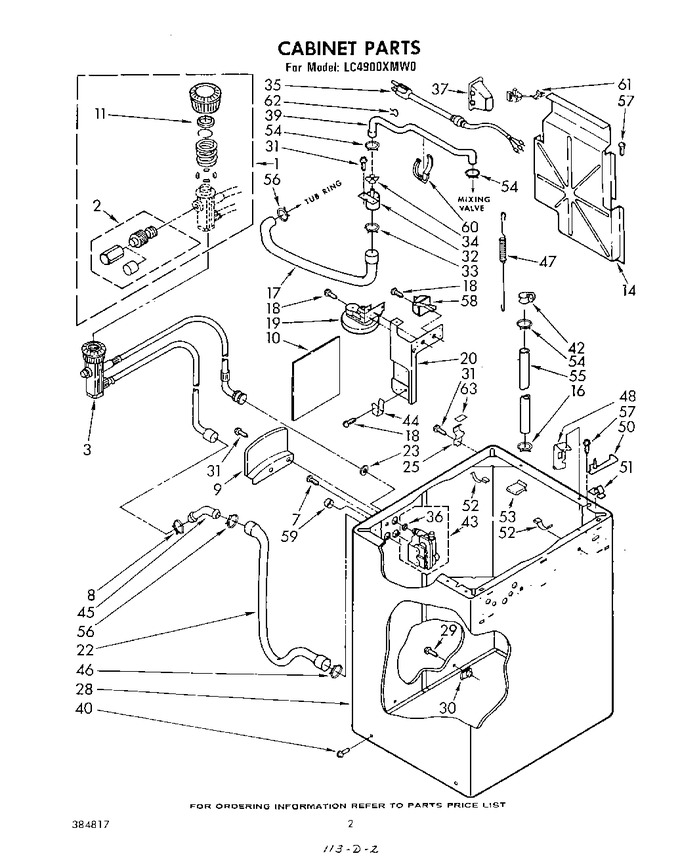

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP285170 | Collar Kit, Faucet Coupler (Replaces: 285170) |
|
Immediately | $ 64.29 | ||||
| 2 | 285171 | Valve, Pressure Relief |
|
- | |||||
| 3 | 359607 | Coupler & Hose |
|
- | |||||
| 7 | WP3351614 | Screw, 10 X 3/8 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 8 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 9 | 356499 | Bracket, Hose Storage |
|
$ 32.28 | |||||
| 10 | 353885 | Barrier, Splash |
|
- | |||||
| 11 | WP910218 | Seal (Replaces: 711696) |
|
Immediately | $ 9.05 | ||||
| 14 | 356211 | Box, Power Cord |
|
- | |||||
| 16 | WP596669 | Clamp, Hose (Replaces: 272845) |
|
Immediately | $ 7.56 | ||||
| 17 | 356314 | Hose, Water Inlet |
|
- | |||||
| 18 | 98520 | Screw |
|
- | |||||
| 19 | 370865 | Switch, Water Level |
|
- | |||||
| 20 | 357174 | Bracket, Control |
|
- | |||||
| 22 | 356727 | Hose, Drain |
|
- | |||||
| 23 | WP16123 | Washer (Replaces: 16123) |
|
$ 6.93 | |||||
| 25 | 356606 | Hinge, Cabinet (2) |
|
- | |||||
| 28 | 370910 | Cabinet (white) |
|
- | |||||
| 28 | 376950 | Cabinet (almond) |
|
- | |||||
| 28 | 376951 | Cabinet (coffee) |
|
- | |||||
| 28 | 376953 | Cabinet (golden Harvest) |
|
- | |||||
| 29 | 9426223 | Screw, 10-16 X 1 |
|
- | |||||
| 30 | 357043 | Spacer, Cabinet (2) |
|
- | |||||
| 31 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 32 | WP356363 | Siphon Break (Replaces: 356363) |
|
Immediately | $ 7.19 | ||||
| 33 | WP616099 | Clamp, Hose (Replaces: 272861) |
|
Immediately | $ 7.03 | ||||
| 34 | WP356471 | Cap, Siphon Break (Replaces: 356471) |
|
$ 6.98 | |||||
| 35 | 357500 | Power, Cord |
|
- | |||||
| 36 | WP96160 | Screen, Filter (Replaces: 96160) |
|
$ 10.54 | |||||
| 37 | 356231 | Housing, Power Cord |
|
- | |||||
| 39 | 357048 | Hose, Water Inlet |
|
- | |||||
| 40 | WP273556 | Screw, 10-12 X 5/8 (Replaces: 273556) |
|
Immediately | $ 7.04 | ||||
| 42 | 356982 | Bracket |
|
- | |||||
| 43 | 285805 | Valve, Water Mixing (serviced Only As A Complete Assembly) (Replaces: 358992) |
|
Immediately | $ 49.57 | ||||
| 44 | 357171 | Clamp, Hose |
|
- | |||||
| 45 | W11213338 | Connector, Hose (Replaces: 356739) |
|
$ 63.54 | |||||
| 46 | WP285655 | Clamp, Hose (Replaces: 353097) |
|
Immediately | $ 7.55 | ||||
| 47 | 356887 | Spring, Hose Retaining |
|
- | |||||
| 48 | 357504 | Bracket, Harness |
|
- | |||||
| 50 | 356916 | Pad, Top (l.h.) |
|
- | |||||
| 50 | 356917 | Pad, Top (r.h.) |
|
- | |||||
| 51 | 356422 | Lock, Front Top |
|
- | |||||
| 52 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 53 | 356649 | Clip |
|
- | |||||
| 54 | WP596669 | Clamp, Hose (Replaces: 353367) |
|
Immediately | $ 7.56 | ||||
| 55 | 356397 | Hose, Pump To Filter |
|
- | |||||
| 56 | 353094 | Clamp, Hose |
|
- | |||||
| 57 | WP488234 | Screw (Replaces: 9412221) |
|
$ 6.07 | |||||
| 58 | 370145 | Switch, Water Temperature |
|
- | |||||
| 59 | 70136 | Cap, Pipe (Replaces: 356054) |
|
Immediately | $ 3.17 | ||||
| 60 | 356746 | Clip, Condenser |
|
$ 19.03 | |||||
| 61 | 357499 | Relief, Strain |
|
- | |||||
| 62 | 357469 | Clip |
|
- | |||||
| 63 | 18849 | Pad, Top Hinge |
|
$ 18.13 |
