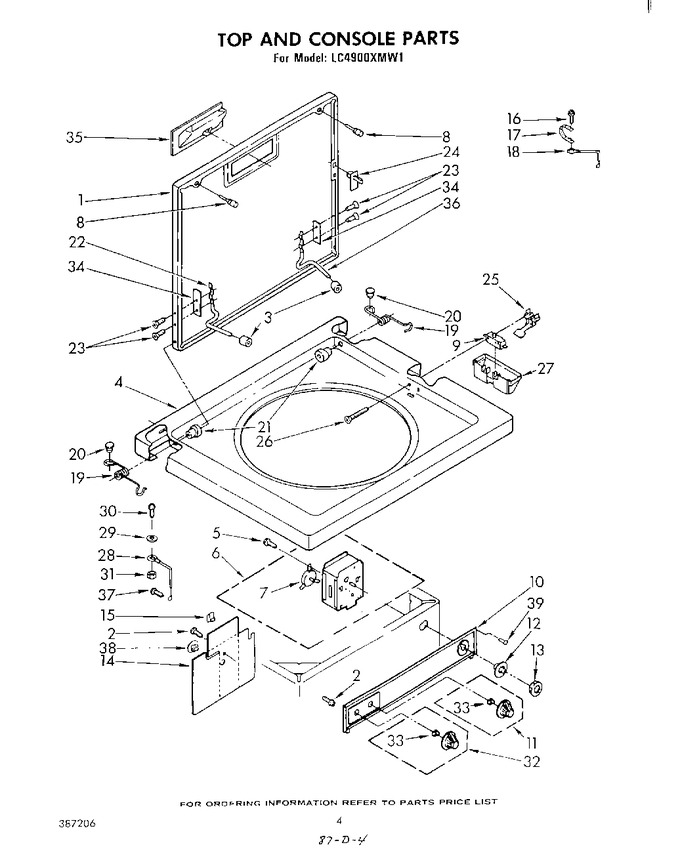

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 385585 | Lid (golden Harvest) |
|
- | |||||
| 1 | 385582 | Lid (almond) |
|
- | |||||
| 1 | 385583 | Lid (coffee) |
|
- | |||||
| 1 | 385581 | Lid (white) |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 4 | 384213 | Top (golden Harvest) |
|
- | |||||
| 4 | 384210 | Top (almond Model) |
|
- | |||||
| 4 | WP384693 | Top (white Model) (Replaces: 384209) |
|
$ 274.65 | |||||
| 4 | 384211 | Top (coffee) |
|
- | |||||
| 5 | WP356418 | Screw (Replaces: 96435) |
|
$ 7.13 | |||||
| 6 | 385359CP | Timer, Disconnect (60 Hz.) (Replaces: 385359) |
|
- | |||||
| 7 | 365941 | Motor, Timer |
|
- | |||||
| 8 | 80011 | Bumper (2) (Replaces: 384475) |
|
Immediately | $ 8.98 | ||||
| 9 | 00-6163 | Switch (alt.) (Replaces: 364090) |
|
$ 22.92 | |||||
| 9 | W10820036 | Switch (Replaces: 660308) |
|
Immediately | $ 27.45 | ||||
| 9 | W10820036 | Switch (alt.) (Replaces: 367034) |
|
Immediately | $ 27.45 | ||||
| 9 | W10820036 | Switch (alt.) (Replaces: 364091) |
|
Immediately | $ 27.45 | ||||
| 10 | 375544 | Panel, Control |
|
- | |||||
| 11 | 370269 | Knob, Assembly Water Temperature |
|
- | |||||
| 12 | 385527 | Dial, Timer |
|
- | |||||
| 13 | 356500 | Knob, Timer |
|
- | |||||
| 14 | 357901 | Shield, Timer |
|
- | |||||
| 15 | 356387 | Clip |
|
- | |||||
| 16 | 132848 | Screw, 10-24 X 1 |
|
- | |||||
| 17 | 22965 | Strap, Ground |
|
- | |||||
| 18 | 364089 | Wire, Ground |
|
- | |||||
| 19 | 384461 | Spring, Lid (includes Illus. 20) (r.h.) |
|
- | |||||
| 19 | 384460 | Spring, Lid (includes Illus. 20) (l.h.) |
|
- | |||||
| 20 | 54690 | Plug, Button |
|
- | |||||
| 21 | WP21258 | Bearing, Hinge (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 22 | 384458 | Hinge, Lid (l.h.) |
|
$ 76.11 | |||||
| 23 | WPW10119828 | Screw (Replaces: 18724) |
|
Immediately | $ 6.47 | ||||
| 24 | WP358684 | Strike, Lid Switch (Replaces: 357913) |
|
Immediately | $ 6.90 | ||||
| 25 | 357347 | Switch Actuator Assembly |
|
- | |||||
| 26 | 354764 | Screw & Washer |
|
- | |||||
| 27 | WP359231 | Shield, Lid Switch (Replaces: 354289) |
|
$ 7.58 | |||||
| 28 | 368715 | Wire, Ground |
|
- | |||||
| 29 | 90918 | Washer |
|
- | |||||
| 30 | WP308544 | Screw, 8-32 X 5/16 (Replaces: 274707) |
|
Immediately | $ 6.98 | ||||
| 31 | W10080180 | Nut (Replaces: 271166) |
|
$ 12.13 | |||||
| 32 | 367675 | Knob Assembly, Water Level |
|
- | |||||
| 33 | 599530307 | Clip Timer (Replaces: 90015) |
|
- | |||||
| 34 | WP21097 | Pad, Hinge (Replaces: 21097) |
|
$ 7.02 | |||||
| 35 | 379884 | Handle, Lid (white) |
|
- | |||||
| 35 | 379885 | Handle, Lid (almond) |
|
- | |||||
| 35 | 379886 | Handle, Lid (coffee) |
|
- | |||||
| 35 | 379888 | Handle, Lid (golden Harvest) |
|
- | |||||
| 36 | 384459 | Hinge, Lid (r.h.) |
|
$ 76.63 | |||||
| 37 | WP488234 | Screw, 10 X 3/8 (Replaces: 9412221) |
|
$ 6.07 | |||||
| 38 | 356288 | Clip, Push-on (2) |
|
- | |||||
| 39 | 694024 | Rivet, Plastic (2) |
|
- |
