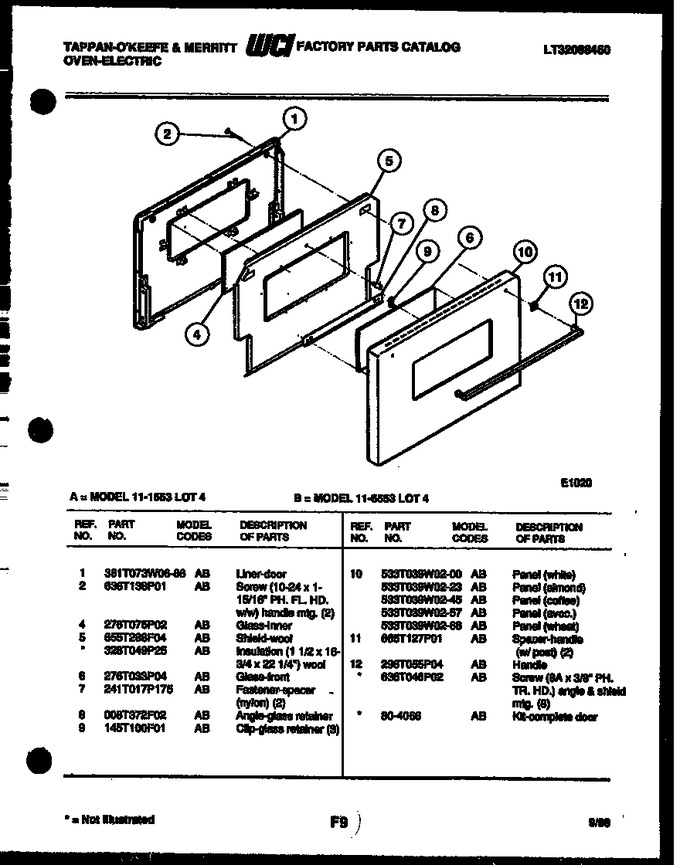

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 381T073W06-86 | Liner-door |
|
- | |||||
| 2 | 636T138P01 | Screw (10-24 X 1-15/16`` Ph.fl.hd.w/w) Handle Mtg. (2) |
|
- | |||||
| 4 | 276T075P02 | Glass-inner |
|
- | |||||
| 5 | 655T288F04 | Shield-wool |
|
- | |||||
| 6 | 276T033P04 | Glass-front |
|
- | |||||
| 7 | 241T017P175 | Fastener-spacer (nylon) (2) |
|
- | |||||
| 8 | 008T372F02 | Angle-glass Retainer |
|
- | |||||
| 9 | 145T100F01 | Clip-glass Retainer (3) |
|
- | |||||
| 10 | 533T039W02-57 | Panel (avoc) |
|
- | |||||
| 11 | 665T127P01 | Spacer-handle (w/post) (2) |
|
- | |||||
| 12 | 296T055P04 | Handle |
|
- | |||||
| *17566 | 636T046P02 | Screw (8a X 3/8`` Ph.tr.hd.) Angle & Shield Mtg. (8) |
|
- | |||||
| *17566 | 80-4066 | Kit-complete Door |
|
- | |||||
| 5A | 328T049P25 | Insulation (1 1/2 X 16-3/4 X 22 1/4``) Wool |
|
- |
