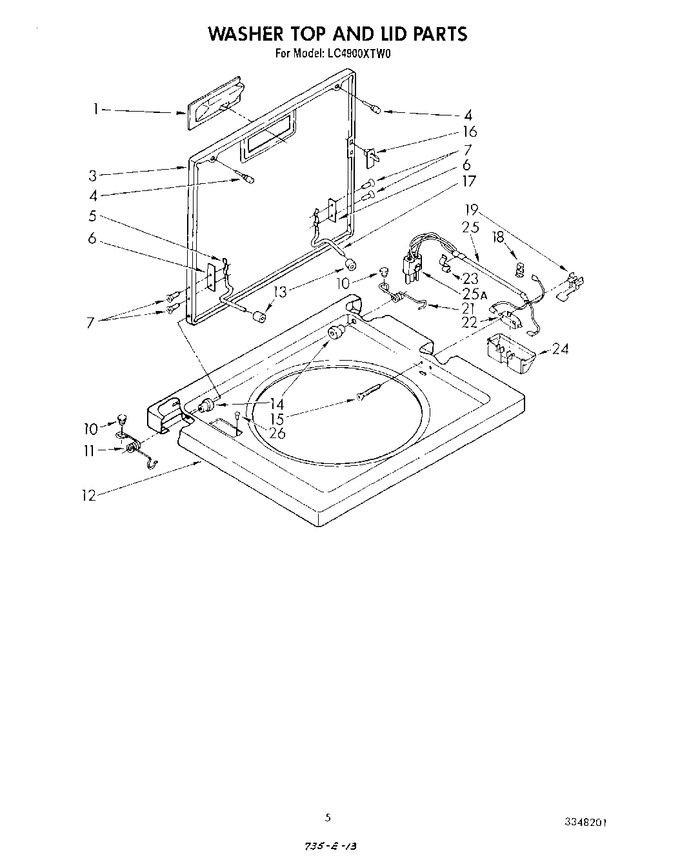

SELECT A DIAGRAM

02 - Rear And Side Panel , Literature An


03 - Console And Front Panel


04 - Washer Top And Lid


05 - Wiring Harness


06 - Agitator, Basket And Tub


07 - Miscellaneous , Permanent Installation


08 - Machine Base


09 - Brake, Clutch, Gearcase, Motor And Pump


10 - Gearcase


11 - Brake And Drive Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
1	379889		Handle, Lid (white)				$ 33.92
1	379885		Handle, Lid (almond)		Appelez-nous	-
1	379890		Handle, Lid (toast)		Appelez-nous	-
1	379891		Handle, Lid (platinum)		Appelez-nous	-
3	3348020		Lid (platinum)		Appelez-nous	-
3	3348018		Lid (white Model)		Appelez-nous	-
3	3348019		Lid (almond Model)		Appelez-nous	-
3	3348022		Lid (golden Harvest)		Appelez-nous	-
3	3348021		Lid (toast)		Appelez-nous	-
4	80011		Bumper, Lid (2)   (Replaces: 384475)			Immediately	$ 8.98
5	384458		Hinge, Lid (l.h.)				$ 76.11
6	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 7.02
7	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 18724)			Immediately	$ 6.47
10	54690		Plug, Button (2)		Appelez-nous	-
11	384463		Spring, Lid (l.h.) (includes Illus. 10)		Appelez-nous	-
12	386544		Top (toast)		Appelez-nous	-
12	386545		Top (platinum)		Appelez-nous	-
12	WP384693		Top (white Model)   (Replaces: 384209)				$ 274.65
12	384213		Top (golden Harvest)		Appelez-nous	-
12	384210		Top (almond Model)		Appelez-nous	-
13	19119		Bumper, Lid Hinge (2)				$ 5.75
14	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
15	354764		Screw & Washer, Lid Switch Shield (2)		Appelez-nous	-
16	WP358684		Strike, Lid Switch   (Replaces: 357913)			Immediately	$ 6.90
17	384459		Hinge, Lid (r.h.)				$ 76.63
18	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
19	357347		Actuator, Lid Switch		Appelez-nous	-
21	384462		Spring, Lid (r.h.) (includes Illus. 10)		Appelez-nous	-
22	W10820036		Switch, Lid   (Replaces: 359230)			Immediately	$ 27.45
23	WP90016		Clip, Harness Routing   (Replaces: 90016)				$ 10.19
24	WP359231		Shield, Lid Switch   (Replaces: 359231)				$ 7.58
25	3350429		Harness, Lid Switch		Appelez-nous	-
25	WP62889		Receptacle, Terminal (3-way) (connects With Harness)   (Replaces: 62889)				$ 6.88
26	354239		Rivet, Serial Nameplate (2)		Appelez-nous	-
