02 - Cabinet Parts
03 - Console And Control Parts
04 - Tub Detail
05 - Motor And Idler Arm Clutch
06 - Transmission Parts
07 - Portable Washer Components
SELECT A DIAGRAM
New Model Search:

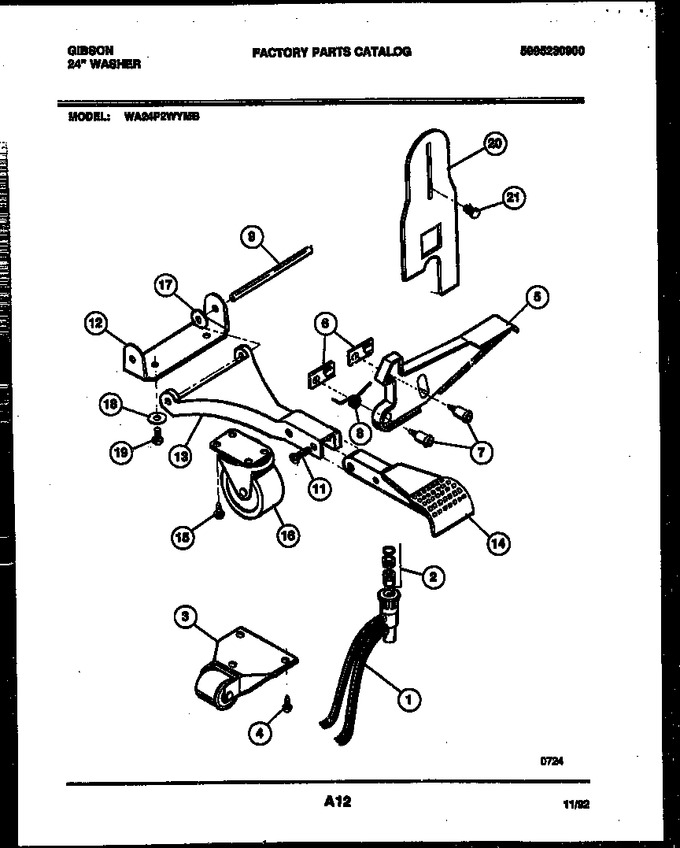

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303284143 | Hose Assembly |
|
- | |||||
| 2 | 5303283875 | Hose-kit Hardware |
|
- | |||||
| 3 | 08027586 | Caster-front (2) |
|
- | |||||
| 4 | 08001617 | Screw-caster (4) |
|
- | |||||
| 5 | 08027587 | Pedal-release/catch |
|
- | |||||
| 6 | 08027588 | Speednut |
|
- | |||||
| 7 | 5303283876 | Screw-shoulder |
|
- | |||||
| 8 | 08027590 | Spring |
|
- | |||||
| 9 | 08027591 | Spring Pin |
|
- | |||||
| 11 | 08027592 | Screw |
|
- | |||||
| 12 | 08027593 | Bracket |
|
- | |||||
| 13 | 08027594 | Pedal-caster |
|
- | |||||
| 14 | 08027595 | Pedal-extension |
|
- | |||||
| 15 | 08037851 | Screw |
|
$ 3.57 | |||||
| 16 | 08027597 | Caster Assembly |
|
- | |||||
| 17 | 5303161306 | Spring Washer |
|
$ 12.49 | |||||
| 18 | 5308002468 | Washer |
|
- | |||||
| 19 | 5308001638 | Screw |
|
- | |||||
| 20 | 08027598 | Shield |
|
- | |||||
| 21 | 08027599 | Clip |
|
- | |||||
| 4A | 5303015671 | Screw-caster (2) |
|
- |
