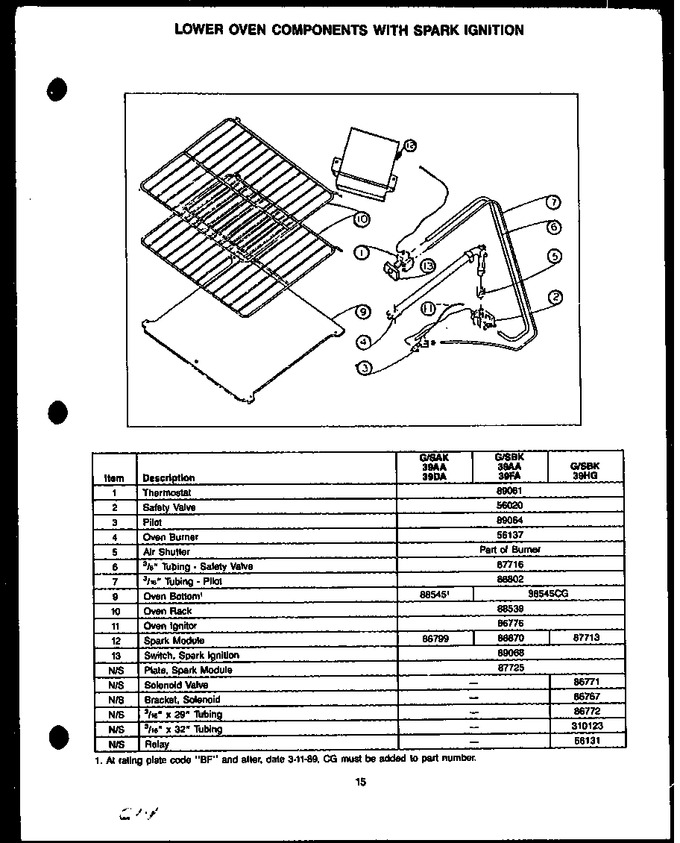

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0089061 | Thermostat, Oven |
|
- | |||||
| 2 | D511969WP | Housing, Blower (Replaces: 56020) |
|
$ 61.51 | |||||
| 3 | Y0089064 | Pilot, Oven Burner (spark) |
|
- | |||||
| 4 | 0056137 | Oven Burner |
|
- | |||||
| 6 | Y0087716 | Tubing, Oven Burner |
|
- | |||||
| 7 | Y0088802 | Tubing, Oven Pilot 3/16`` X 53`` |
|
- | |||||
| 9 | 0088545 | Sub 86709cg, Oven Bottom |
|
- | |||||
| 10 | Y0088539 | Sub 56053, Oven Rack, 24`` |
|
- | |||||
| 11 | Y0086776 | Igniter-spark Oven |
|
- | |||||
| 12 | Y0086799 | Sub 88870, Spark Module |
|
- | |||||
| 13 | WP878009 | Switch, Spark, O.h.c. (Replaces: Y0089068) |
|
$ 103.38 | |||||
| NI | Y0087725 | Plate, Spark Module |
|
- |
