02 - Cabinet Parts


03 - Console And Control Parts

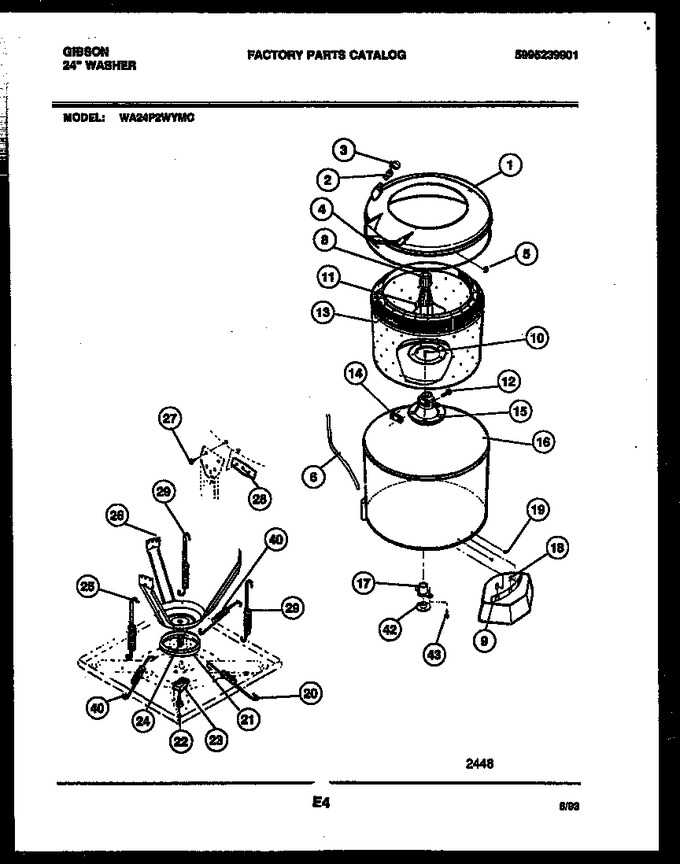

04 - Tub Detail


05 - Motor And Idler Arm Clutch


06 - Transmission Parts


07 - Portable Washer Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303207010		Cover-tub		Appelez-nous	-
2	5308027515		Valve-check		Appelez-nous	-
3	F140887026		Clamp-hose		Appelez-nous	-
4	5303161121		Seal-tub Cover		Appelez-nous	-
5	5303161199		Clip-cover (8)				$ 8.93
6	5304401845		Tube-pressure   (Replaces: 5303292722)				$ 58.12
8	5303161122		Cap-agitator		Appelez-nous	-
9	5303283049		Shield-motor		Appelez-nous	-
10	137546400		Screw-trunnion (5)   (Replaces: 5303283293)				$ 28.35
11	5303283050		Agitator		Appelez-nous	-
12	137539500		Screw-lock Plate   (Replaces: 5308027517)				$ 20.24
13	5303284815		Tub-spin		Appelez-nous	-
14	137107000		Lockplate   (Replaces: 5308001923)			Immediately	$ 26.94
15	5303283294		Trunnion		Appelez-nous	-
16	131033000		Tub-splash		Appelez-nous	-
17	3204405		Bearing Housing			Immediately	$ 97.81
18	5303283052		Clip		Appelez-nous	-
19	5303283053		Screw		Appelez-nous	-
20	5308006573		Spring-horizontal				$ 31.33
21	5308002385		Snubber Ring				$ 54.86
22	5303161284		Shipping Bolt		Appelez-nous	-
23	5303161202		Shipping Block		Appelez-nous	-
24	3161203		Expansion Nut		Appelez-nous	-
25	5303161131		Spring-vertical (short)		Appelez-nous	-
26	5303283054		Leg & Dome		Appelez-nous	-
27	3161205		Screw-legs (6)		Appelez-nous	-
28	5303269887		Plate-leg Bolt (3)		Appelez-nous	-
29	5303161133		Spring-vertical (long)				$ 47.36
40	5308006573		Spring-horizontal				$ 31.33
42	5308002401		Washer			Immediately	$ 16.00
43	3205150		Screw				$ 3.55
*59017	5373565000		Ring-agitator Cap				$ 24.59
