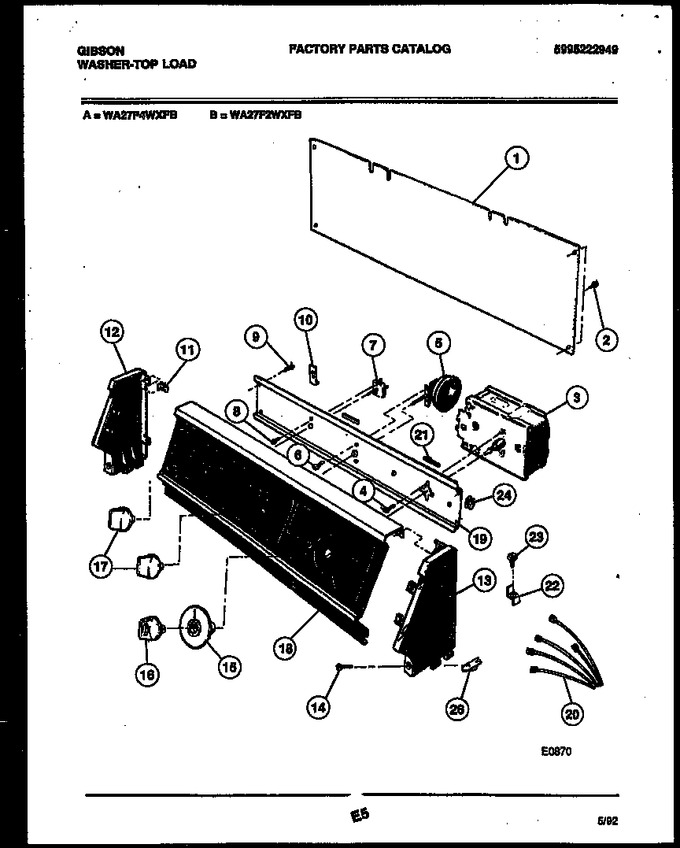

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303205838 | Cover |
|
- | |||||
| 2 | 5303015671 | Screw |
|
- | |||||
| 3 | 5303271764 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 5303210130 | Switch - Pressure |
|
- | |||||
| 6 | 5303161233 | Screw |
|
- | |||||
| 9 | 5303015671 | Screw |
|
- | |||||
| 10 | 3281200 | Clip-ground |
|
- | |||||
| 11 | 5308014350 | Clip |
|
- | |||||
| 12 | 3205842 | End Cap-lh |
|
- | |||||
| 13 | 3205840 | End Cap-rh |
|
- | |||||
| 14 | 3281203 | Screw |
|
- | |||||
| 15 | 5303210966 | Pointer |
|
- | |||||
| 16 | 5303210967 | Knob - Timer |
|
$ 31.40 | |||||
| 17 | 5308015435 | Knob-rotary |
|
$ 44.29 | |||||
| 18 | 5303210972 | Panel Control |
|
- | |||||
| 19 | 5303210137 | Bracket - Control |
|
- | |||||
| 20 | 5303210329 | Harness |
|
- | |||||
| 21 | 5303281201 | Pad |
|
- | |||||
| 22 | 5379171000 | Terminal |
|
- | |||||
| 23 | 08001689 | Screw |
|
- | |||||
| 24 | 5303285493 | Clip - Harness |
|
- | |||||
| 26 | 5300503065 | Nut |
|
$ 6.09 | |||||
| *56631 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 |
