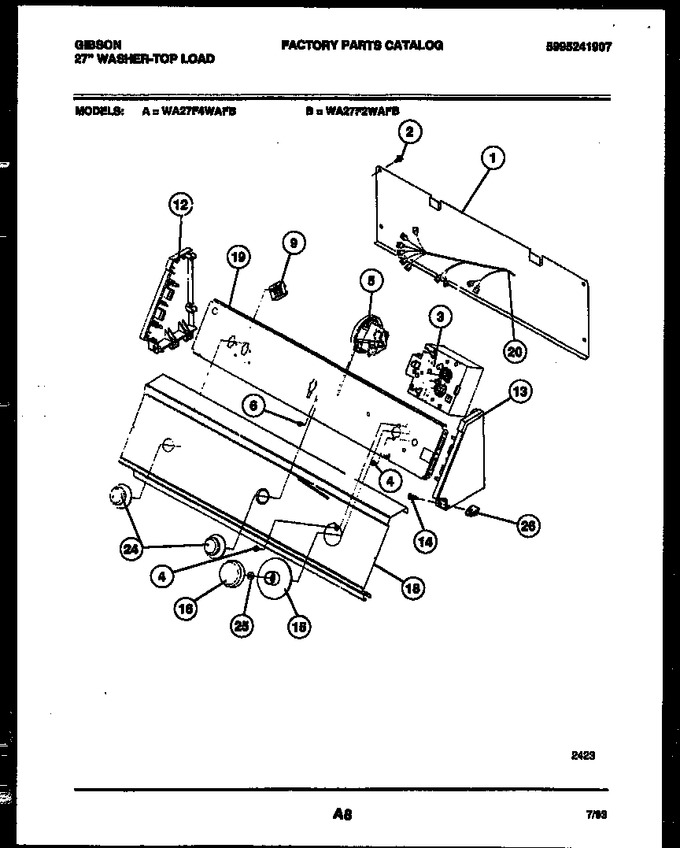

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 131052100 | Screw |
|
- | |||||
| 3 | 5303271760 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047500 | Switch-pressure |
|
$ 186.53 | |||||
| 6 | 5303015671 | Screw |
|
- | |||||
| 9 | 131047000 | Switch-temperature |
|
- | |||||
| 12 | 5303291344 | End Cap-lh |
|
$ 59.59 | |||||
| 13 | 5303291352 | End Cap-rh |
|
$ 56.49 | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131030502 | Dial |
|
- | |||||
| 16 | 131030400 | Knob-timer |
|
- | |||||
| 18 | 131092800 | Panel - Control |
|
- | |||||
| 19 | 131157806 | Bracket - Control |
|
- | |||||
| 20 | 131165600 | Harness |
|
- | |||||
| 24 | 131032500 | Knob, Rotary |
|
$ 64.10 | |||||
| 25 | 5308015493 | Spacer |
|
$ 14.36 | |||||
| 26 | 5300503065 | Clip |
|
$ 6.09 | |||||
| *64340 | 08001689 | Screw |
|
- | |||||
| *64341 | 5303281035 | Grd. Screw-cabinet |
|
- |
