Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303205838 Cover Appelez-nous -
2 5303015671 Screw Appelez-nous -
3 5303208807 Timer Appelez-nous -
4 3161188 Screw Appelez-nous -
5 5303210964 Switch - Pressure Appelez-nous -
6 5303161233 Screw Appelez-nous -
7 5303210132 Switch - Temperature Special Order $ 155.14

8 3161259 Screw Special Order $ 6.83

9 5303015671 Screw Appelez-nous -
10 3281200 Clip-ground Appelez-nous -
11 5308014350 Clip Appelez-nous -
12 3205842 End Cap-lh Appelez-nous -
13 3205840 End Cap-rh Appelez-nous -
14 3281203 Screw Appelez-nous -
15 5303210966 Pointer Appelez-nous -
16 5303210967 Knob - Timer Special Order $ 31.40

17 5308015435 Knob-rotary Special Order $ 44.29

18 5303210970 Panel Control Appelez-nous -
18 5303210890 Panel Control Appelez-nous -
19 5303210137 Bracket - Control Appelez-nous -
20 5303210330 Harness Appelez-nous -
21 5303281201 Pad Appelez-nous -
22 5379171000 Terminal Appelez-nous -
23 08001689 Screw Appelez-nous -
24 F142313-000 Clip - Harness Appelez-nous -
26 5300503065 Nut Special Order $ 6.09

*32112 5308015493 Spacer-timer Shaft Special Order $ 14.36


    View Diagram in Separate Window     Print Icon   Print Part List

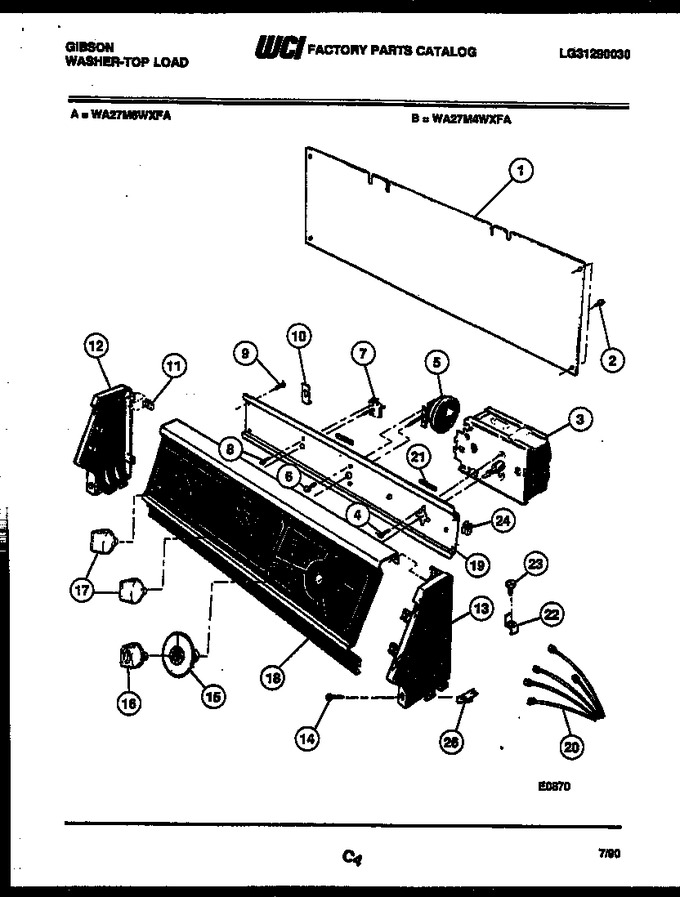

Diagram for WA27M6WXFA
