Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
2 5308006553 Screw Appelez-nous -
3 5303271761 Timer Appelez-nous -
4 3161188 Screw Appelez-nous -
5 131077100 Switch - Pressure Appelez-nous -
6 5303015671 Screw Appelez-nous -
12 5303291344 End Cap-lh Special Order $ 59.59

13 5303291352 End Cap-rh Special Order $ 56.49

14 5303289526 Screw Appelez-nous -
15 131030502 Dial Appelez-nous -
16 131030400 Knob-timer Appelez-nous -
18 131091800 Panel - Control Appelez-nous -
19 131157806 Bracket - Control Appelez-nous -
20 131166000 Harness Appelez-nous -
25 5308015493 Spacer Special Order $ 14.36

26 5300503065 Clip Special Order $ 6.09

*61445 08001689 Screw Appelez-nous -
*61446 5303281035 Grd. Screw-cabinet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

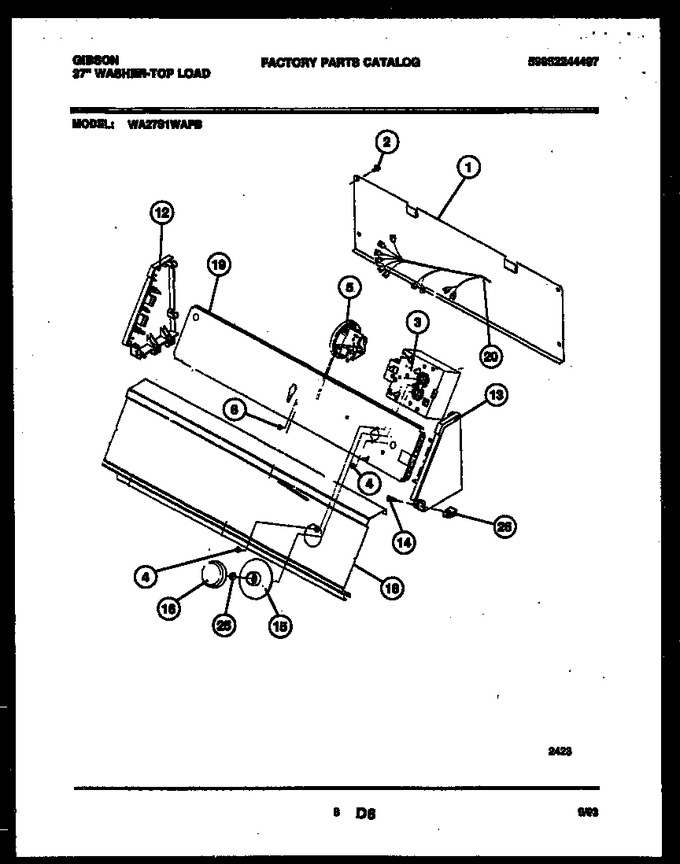

Diagram for WA27S1WAFB
