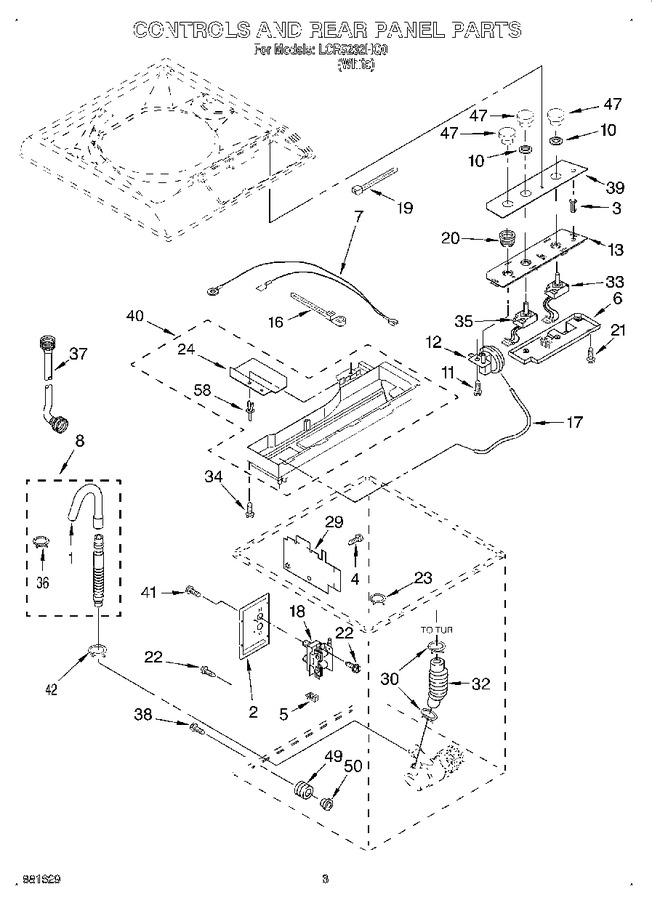

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 83.88 | |||||
| 2 | 3935155 | Bracket-valve |
|
- | |||||
| 3 | 3935357 | Extension, Start-pause |
|
- | |||||
| 4 | 3429189 | Screw |
|
- | |||||
| 5 | 3935875 | Clip, Harness |
|
- | |||||
| 6 | 3968294 | Timer/control Board |
|
- | |||||
| 7 | 3935929 | Jumper-wire |
|
- | |||||
| 8 | 285666 | Drain-hose (9 Ft.) (not Included.) (Replaces: 661577) |
|
Immediately | $ 56.11 | ||||
| 8 | 285664 | Drain-hose (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 33.20 | ||||
| 10 | 3935353 | Seal |
|
- | |||||
| 11 | 3935602 | Screw, Switch Mtg. |
|
- | |||||
| 12 | 3966786 | Switch, Water Level |
|
- | |||||
| 13 | 3967605 | Bracket, Control (must Order No. 3 & No. 39.) |
|
- | |||||
| 16 | 3935429 | Clamp, Tie Wrap |
|
- | |||||
| 17 | 3935344 | Hose, Pressure Switch. |
|
- | |||||
| 18 | 3360396 | Valve, Water Mixing |
|
- | |||||
| 19 | WP2205813 | Wire, Tie (2) (Replaces: 3429563) |
|
$ 6.95 | |||||
| 20 | 3935354 | Seal, Pressure Switch |
|
- | |||||
| 21 | 3934036 | Screw, Control Board (5) |
|
- | |||||
| 22 | WP3400094 | Screw (Replaces: 3966200) |
|
$ 7.14 | |||||
| 23 | 3968185 | Clamp, Hose (2) |
|
- | |||||
| 24 | 3935672 | Shield, Harness |
|
- | |||||
| 29 | 3967286 | Shield & Warning Water Valve |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 7.03 | ||||
| 32 | 3429900 | Hose, Pump To Tub |
|
$ 22.54 | |||||
| 33 | 3966207 | Switch, Cycle Selection |
|
- | |||||
| 34 | 3935634 | Screw, Top Shield (2) |
|
- | |||||
| 35 | 3966209 | Switch, Water Temperature |
|
- | |||||
| 36 | WP3357331 | Clamp, Drain Hose (Replaces: 3357331) |
|
$ 6.80 | |||||
| 37 | WP89503 | Hose-inlet (Replaces: 660028) |
|
Immediately | $ 21.68 | ||||
| 38 | 3400038 | Screw, Pump Mtg. (2) |
|
- | |||||
| 39 | 3935526 | Panel, Console |
|
- | |||||
| 40 | 3935627 | Top, Shield Assy. |
|
- | |||||
| 41 | 3934148 | Screw, 10-16 X 1/2 |
|
- | |||||
| 42 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 47 | WP3957796 | Knob, Temperature & Selection Control (Replaces: 3950759) |
|
Immediately | $ 49.35 | ||||
| 49 | 3428526 | Grommet, Pump (3) |
|
- | |||||
| 50 | 3428933 | Spacer, Pump (3) |
|
- | |||||
| 58 | 3430186 | Rivet (2) |
|
- |
