Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3935137 Suspension Rod, Front (2) Appelez-nous -
2 3935136 Suspension Rod, Rear (2) Appelez-nous -
3 WP3967051 Strap, Snubber (4)   (Replaces: 3967051) In-Stock Immediately $ 6.47

4 3968380 Ball, Upper Suspension (4) Special Order $ 6.02

5 3429938 Capacitor Special Order $ 16.70

6 3428343 Bracket, Capacitor Appelez-nous -
7 3934040 Screw, Bracket Appelez-nous -
10 3428033 Screw (4) Appelez-nous -
11 3966528 Support, Tub (includes Bearing) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

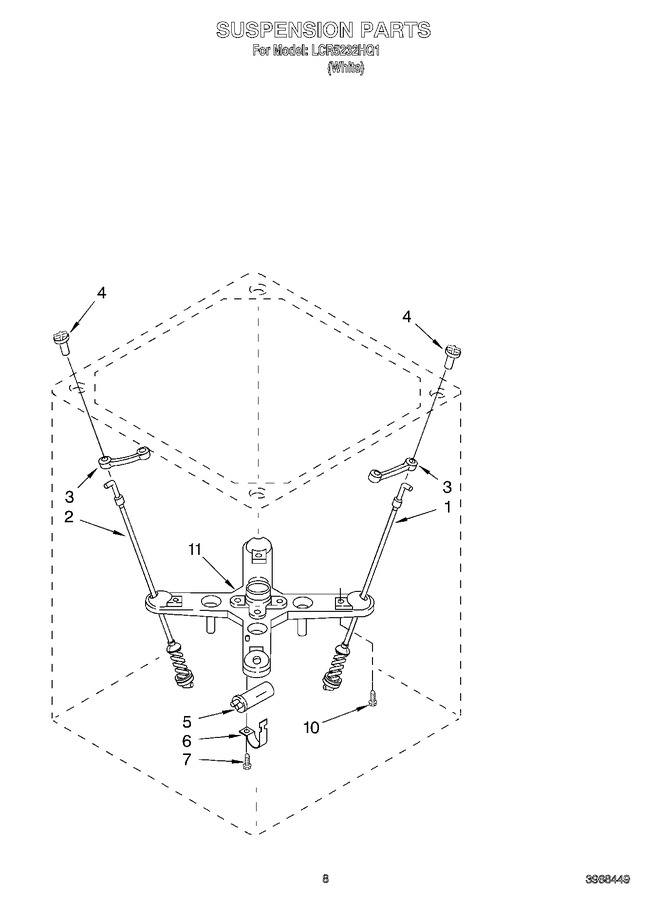

Diagram for LCR5232HQ1
