01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts

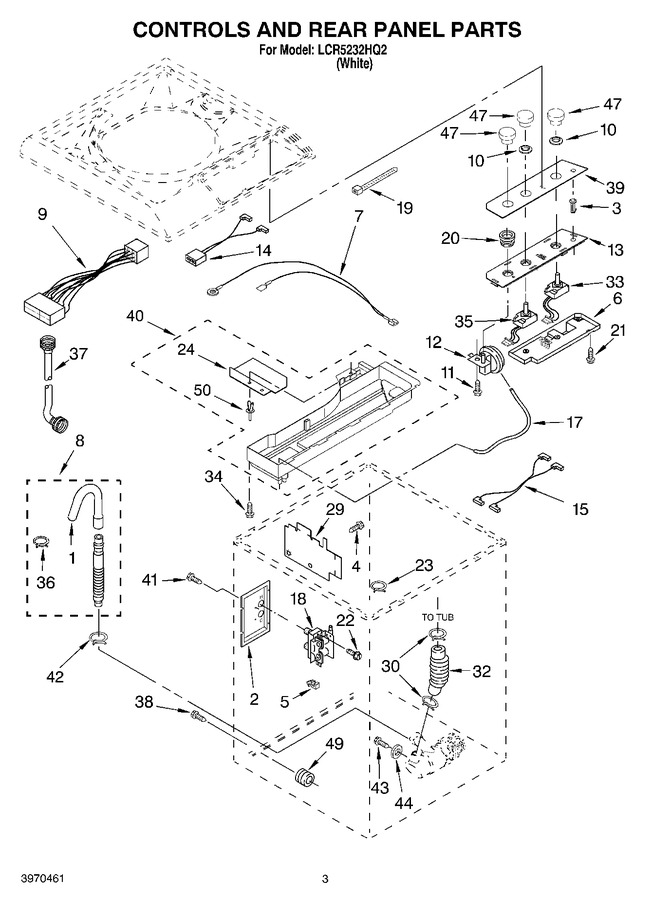

03 - Agitator, Basket And Tub Parts


04 - Transmission, Motor And Pump Parts


05 - Suspension Parts


06 - Wiring Harness Parts


07 - Water System Parts


08 - Miscellaneous Parts - Optional Parts (not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 83.88
2	3935155		Bracket-valve		Appelez-nous	-
3	3935357		Extension, Start-pause		Appelez-nous	-
4	3429189		Screw		Appelez-nous	-
5	3935875		Clip, Harness		Appelez-nous	-
6	3970435		Timer/control Board		Appelez-nous	-
7	3935929		Jumper-wire		Appelez-nous	-
8	285666		Drain-hose (9 Ft.) (not Included.)   (Replaces: 661577)			Immediately	$ 56.11
8	285664		Drain-hose (4 Ft.)   (Replaces: 3951609)			Immediately	$ 33.20
9	3970202		Harness, Control Board		Appelez-nous	-
10	3935353		Seal		Appelez-nous	-
11	3935602		Screw, Switch Mtg.		Appelez-nous	-
12	3966790		Switch, Water Level		Appelez-nous	-
13	3967605		Bracket, Control (must Order No. 3 And No. 39.)		Appelez-nous	-
14	3970203		Harness, Lid Switch		Appelez-nous	-
15	3970204		Harness, Pressure Switch		Appelez-nous	-
17	3969225		Hose, Pressure Switch				$ 9.32
18	3360396		Valve, Water Mixing		Appelez-nous	-
19	WP2205813		Wire, Tie (2)   (Replaces: 3429563)				$ 6.95
20	3935354		Seal, Pressure Switch		Appelez-nous	-
21	3934036		Screw, Control Board (5)		Appelez-nous	-
22	WP3390631		Screw   (Replaces: 62863)				$ 7.04
23	3968185		Clamp, Hose (2)		Appelez-nous	-
24	3935672		Shield, Harness		Appelez-nous	-
29	3935995		Shield, Water Valve		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 7.03
32	3429900		Hose, Pump To Tub				$ 22.54
33	3966207		Switch, Cycle Selection		Appelez-nous	-
34	3935634		Screw, Top Shield (2)		Appelez-nous	-
35	3966209		Switch, Water Temperature		Appelez-nous	-
36	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
37	WP89503		Hose, Inlet (2)   (Replaces: 3970051)			Immediately	$ 21.68
38	3400038		Screw, Pump Mtg		Appelez-nous	-
39	3935526		Panel, Console		Appelez-nous	-
40	3970443		Top, Shield Asm		Appelez-nous	-
41	3934148		Screw, 10-16 X 1/2		Appelez-nous	-
42	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
43	3400038		Screw, 10-16 X 5/8		Appelez-nous	-
44	3970235		Washer		Appelez-nous	-
47	WP3957796		Knob, Temperature & Selection Control   (Replaces: 3950759)			Immediately	$ 49.35
49	3428526		Grommet, Pump (3)		Appelez-nous	-
50	3430186		Rivet (2)		Appelez-nous	-
