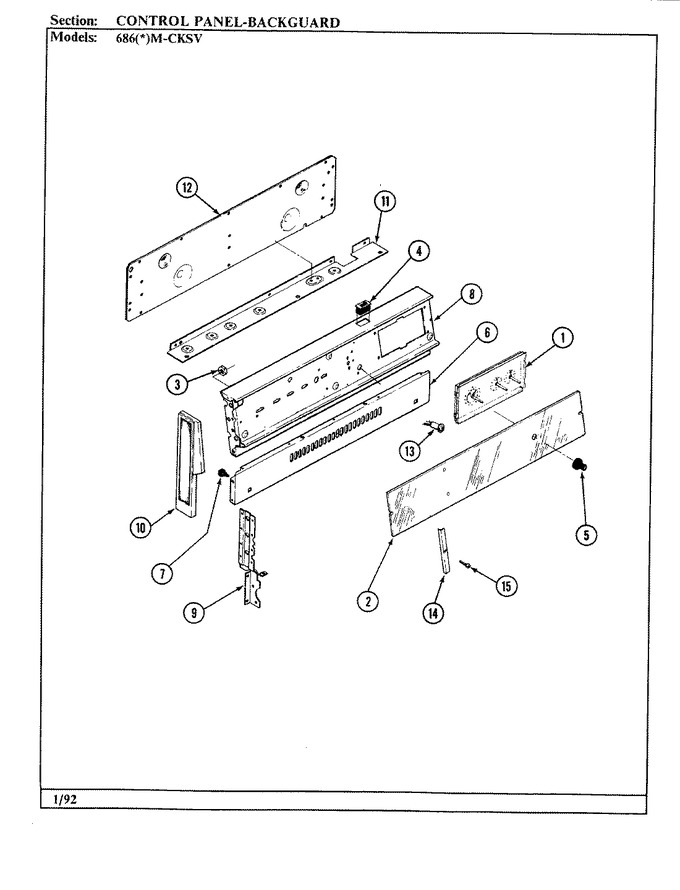

02 - Control Panel
03 - Control Panel/internal Controls
04 - Control System (oven)
05 - Door/drawer
06 - Oven
07 - Top Assy./control System (surface)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F200-80 | Bottom Burner Box | 01 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 2 | 4012F020-80 | Front, Burn Box Bott | 01 |
|
- | ||||
| 3 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 3 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 4 | 4005F139-51 | Cover, Switch | 01 |
|
- | ||||
| 5 | 4005F137-80 | Cover, Catch Assy. | 01 |
|
- | ||||
| 6 | 7711P381-60 | Knob, Selector | 01 |
|
- | ||||
| 7 | 3807F431-45 | Support, Main Top | 01 |
|
- | ||||
| 8 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 8 | 7712P156-60 | Control Panel | 01 |
|
- | ||||
| 9 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P027-60) | 01 |
|
$ 25.06 | ||||
| 10 | 7807P012-60 | Link, Door Lock | 01 |
|
- | ||||
| 11 | 7731P020-60 | Knob, Thermostat | 01 |
|
- | ||||
| 12 | 3807F408-45 | Support, Catch Assy. | 01 |
|
- | ||||
| 13 | 3604F159-45 | Shield Insulation, Catch | 01 |
|
- | ||||
| 13 | 8002P021-60 | Catch, Door Lock | 01 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 15 | 3818F027-45 | Channel, Switch | 01 |
|
- | ||||
| 16 | 3818F049-45 | Channel, Air | 01 |
|
- | ||||
| 17 | 7003P039-60 | Insulation, Switch | 01 |
|
- | ||||
| 17 | 7403P077-60 | Switch----na | 01 |
|
- | ||||
| 17 | 7003P019-60 | Insulation, Switch (upper) | 01 |
|
- | ||||
| 18 | 3807F422-45 | Support, Door Lock Switch | 01 |
|
- | ||||
| 19 | 7101P031-60 | Screw | 01 |
|
- | ||||
| 20 | 8009P019-60 | Lever, Door Lock | 01 |
|
- | ||||
| 21 | WP4159193 | Screw (Replaces: 7101P018-60) | 01 |
|
$ 4.29 | ||||
| 22 | 7116P003-60 | Bolt | 01 |
|
- | ||||
| 23 | 7701P088-60 | Handle, Latch (blk) | 01 |
|
- | ||||
| 24 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- |
