SELECT A DIAGRAM

01 - Top And Cabinet

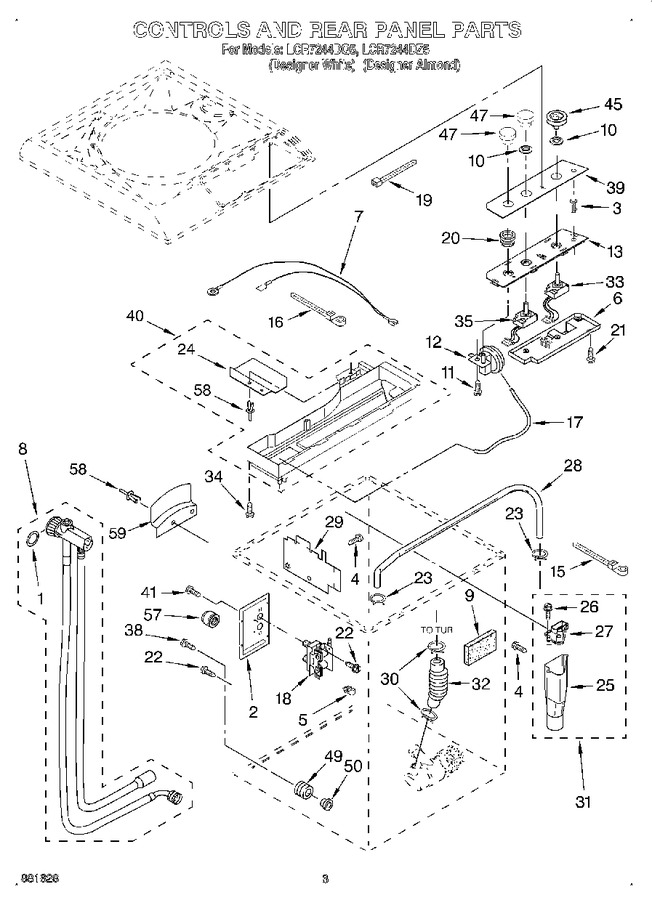

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Transmission, Motor And Pump


05 - Suspension


06 - Wiring Harness


07 - Water System


08 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Rubber   (Replaces: 16123)				$ 6.93
2	3935155		Bracket-valve		Appelez-nous	-
3	3935357		Extension, Start-pause		Appelez-nous	-
4	3429189		Screw		Appelez-nous	-
5	3935875		Clip, Harness		Appelez-nous	-
6	3968293		Timer/control Board		Appelez-nous	-
7	3935929		Jumper-wire		Appelez-nous	-
8	W10849778		Hose Coupler Assembly (includes Item No.1)   (Replaces: 3966810)				$ 271.76
9	3935630		Pad-protector		Appelez-nous	-
10	3935353		Seal		Appelez-nous	-
11	3935602		Screw, Switch Mtg.		Appelez-nous	-
12	3966789		Switch, Water Level				$ 81.22
13	3967605		Bracket, Control (must Order No. 3 & No. 39.)		Appelez-nous	-
15	3429812		Tie, Wire (2) (push Mount)		Appelez-nous	-
16	3935429		Clamp, Tie Wrap		Appelez-nous	-
17	3935344		Hose, Pressure Switch.		Appelez-nous	-
18	3967755		Valve, Water Mixing				$ 93.95
19	WP2205813		Wire, Tie (2)   (Replaces: 3429563)				$ 6.95
20	3935354		Seal, Pressure Switch		Appelez-nous	-
21	3934036		Screw, Control Board (3)		Appelez-nous	-
22	WP3400094		Screw   (Replaces: 3966200)				$ 7.14
23	WP596669		Clamp, Hose (2)   (Replaces: 371501)			Immediately	$ 7.56
24	3935672		Shield, Harness		Appelez-nous	-
25	3935325		Funnel-inlet (body)		Appelez-nous	-
26	WP3400872		Screw, Water Inlet Mtg. (2)   (Replaces: 3934035)				$ 6.95
27	3966222		Funnel-inlet (top)		Appelez-nous	-
28	3935330		Hose, Valve To Water Inlet		Appelez-nous	-
29	3967286		Shield, Water Valve		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 7.03
31	3935327		Funnel-inlet Asy.		Appelez-nous	-
32	3429900		Hose, Pump To Tub				$ 22.54
33	3966202		Switch, Cycle Selection				$ 11.56
34	3935634		Screw, Top Shield (3)		Appelez-nous	-
35	3966208		Switch, Water Temperature				$ 14.29
38	3400038		Screw, Pump Mtg. (2)		Appelez-nous	-
39	3935506		Panel, Console (includes Inlay) (white)		Appelez-nous	-
39	3935507		Panel, Console (includes Inlay) (almond)		Appelez-nous	-
40	3935627		Top, Shield Assy.		Appelez-nous	-
41	3934148		Screw, 10-16 X 1/2		Appelez-nous	-
45	3935461		Knob, Cycle Selection (white)				$ 30.15
45	3935462		Knob, Cycle Selection (almond)		Appelez-nous	-
47	3950760		Knob, Temperature & Selection Control (almond)		Appelez-nous	-
47	WP3957796		Knob, Temperature & Selection Control (white)   (Replaces: 3950759)			Immediately	$ 49.35
49	3428526		Grommet, Pump (3)		Appelez-nous	-
50	3428933		Spacer, Pump (2)		Appelez-nous	-
57	70136		Cap, Threaded   (Replaces: 356054)			Immediately	$ 3.17
58	3430186		Rivet (4)		Appelez-nous	-
59	356499		Bracket, Hose Storage				$ 32.28

    View Diagram in Separate Window       Print Part List
