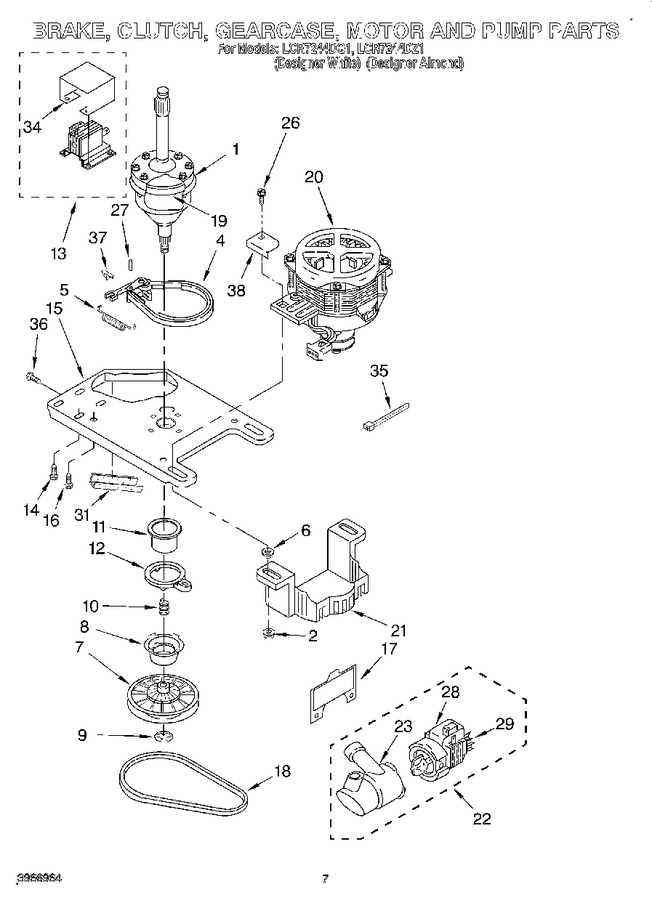

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3430081		Adhesive		Appelez-nous	-
1	3935337		Gearcase Assembly (use		Appelez-nous	-
2	90984		Hex Nut (2)   (Replaces: 3934662)		Appelez-nous	-
4	3428323		Brake Band				$ 20.90
5	3428342		Spring, Brake		Appelez-nous	-
6	3934661		Nut, Washer Locking (2)		Appelez-nous	-
7	3428359		Pulley, Splutch				$ 33.87
8	3428378		Cam, Splutch				$ 35.36
9	WP354987		Ring, Snap   (Replaces: 3934678)			Immediately	$ 10.58
10	3934212		Spring, Splutch		Appelez-nous	-
11	3428380		Slider, Splutch		Appelez-nous	-
12	3428379		Cam Ring, Splutch				$ 5.51
13	3934709		Solenoid		Appelez-nous	-
14	3934040		Screw, Solenoid Mtg. (4)		Appelez-nous	-
15	3430205		Plate, Motor & Bearing Assy.		Appelez-nous	-
16	3934726		Bolt, Motor Plate (4)		Appelez-nous	-
17	3935998		Shield & Warning Motor Splash		Appelez-nous	-
18	3934700		Drive Belt				$ 39.07
19	3429521		Sound Absorber		Appelez-nous	-
20	3934201		Motor, Main Drive (includes Item 6)		Appelez-nous	-
21	3935999		Shield & Warning Pulley.		Appelez-nous	-
22	3430119		Pump (complete)		Appelez-nous	-
23	3430120		Housing, Pump		Appelez-nous	-
26	3934663		Bolt, Motor Mounting (2)		Appelez-nous	-
27	3934183		Pin, Brake Band		Appelez-nous	-
28	3430089		Pump		Appelez-nous	-
29	3429939		Blade, Fan		Appelez-nous	-
31	3429705		Protector, Edge		Appelez-nous	-
34	3935997		Shield & Warning Top Solenoid		Appelez-nous	-
35	WP2205813		Tie, Wire   (Replaces: 3429563)				$ 6.95
36	WP3400094		Screw, Ground   (Replaces: 3966200)				$ 7.14
37	3429416		Lock, Solenoid		Appelez-nous	-
38	3430197		Shield, Motor Connector		Appelez-nous	-
