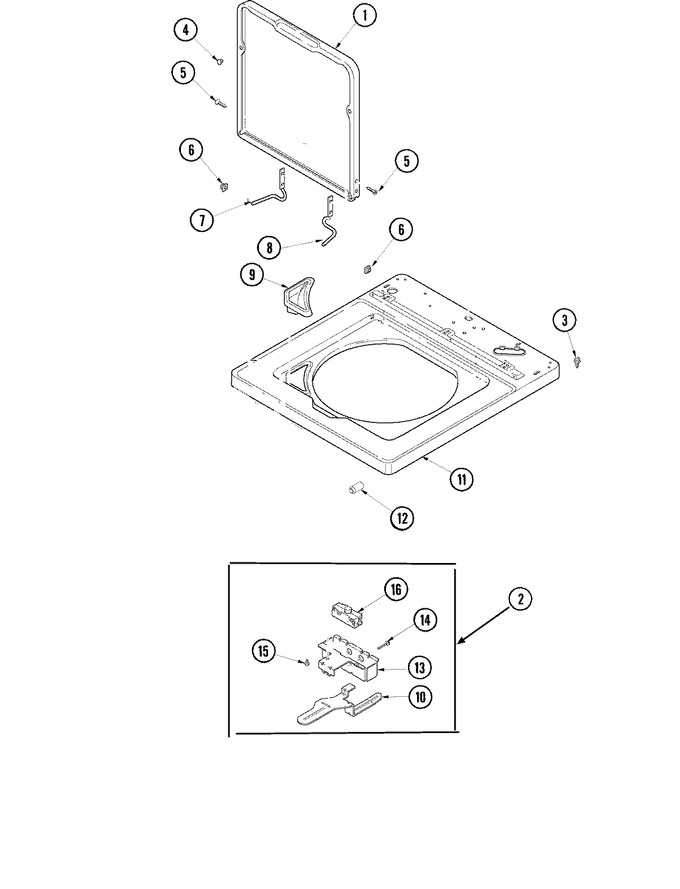

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27001116		Lid (wht)	10	Appelez-nous	-
2	40034901		Lid Switch Assembly	10	Appelez-nous	-
3	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
4	40038001		Bumper	10			$ 8.44
5	WPW10119828		Screw, 6-32x.340 Flat   (Replaces: 40039201)	10		Immediately	$ 6.47
6	33446		Bushing, Hinge   (Replaces: 40008201)	10		Immediately	$ 6.95
7	40094002		Hinge, Lid Left Stop	10	Appelez-nous	-
8	40094101		Hinge, Lid Right Pass	10	Appelez-nous	-
9	27001117		Dispenser, Bleach	10	Appelez-nous	-
10	40009701		Arm, Lid Switch	10	Appelez-nous	-
11	27001157		Top (wht W/l Brackets)	10	Appelez-nous	-
12	40102101		Cap, Hinge	10	Appelez-nous	-
13	40009801		Holder, Lid Switch	10	Appelez-nous	-
14	40040701		Screw, Tapping No.6b-20	10	Appelez-nous	-
15	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
16	27001095		Switch, Lid	10			$ 38.23
