SELECT A DIAGRAM

01 - Top And Cabinet, Literature


02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Transmission, Motor And Pump


05 - Suspension


06 - Wiring Harness


07 - Water System


08 - Miscellaneous, Optional

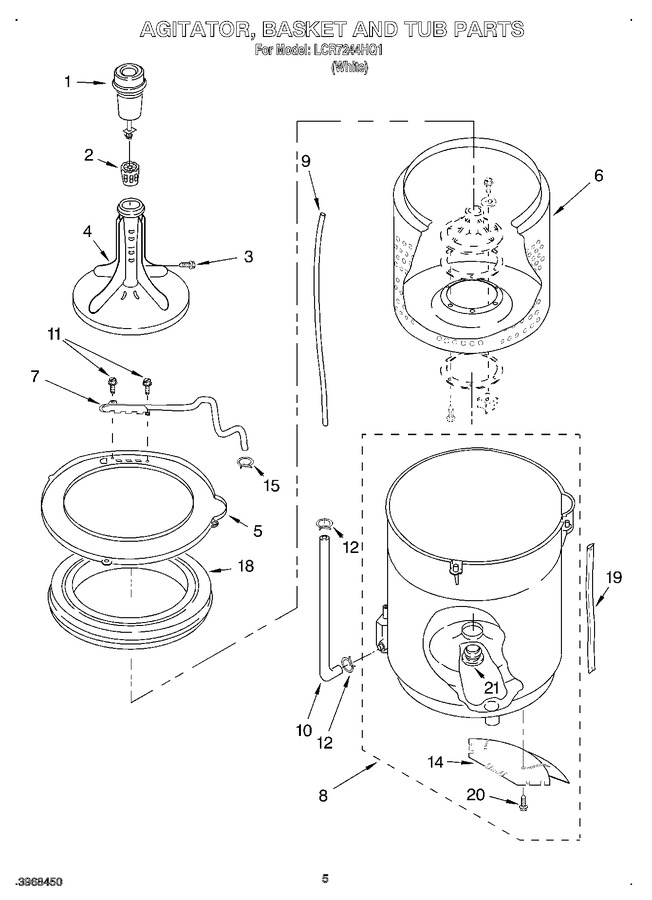

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3428670		Tube & Dispenser Assembly		Appelez-nous	-
2	3428391		Filter		Appelez-nous	-
3	W11700520		Screw   (Replaces: 3400061)				$ 12.24
4	3428392		Agitator		Appelez-nous	-
5	3968262		Tub Ring		Appelez-nous	-
6	3428186		Basket		Appelez-nous	-
7	WP3969019		Vacuum Break Asm   (Replaces: 3969019)				$ 4.91
8	3968473		Tub & Inlet Asy.				$ 470.43
9	WP353244		Hose, Pressure Switch   (Replaces: 3430159)			Immediately	$ 53.94
10	3430339		Hose, Bleach				$ 16.39
11	WP3400872		Screw, 8-18 X 3/8 (2)   (Replaces: 3400872)				$ 6.95
12	WP596669		Clamp, Hose   (Replaces: 370452)			Immediately	$ 7.56
14	3428814		Shield, Tub/motor		Appelez-nous	-
15	3968185		Clamp		Appelez-nous	-
18	3934565		Balance Ring		Appelez-nous	-
19	3966238		Hose, Tub Overflow				$ 6.93
20	WP3400872		Screw (2)   (Replaces: 3429682)				$ 6.95
21	WP3968381		Seal   (Replaces: 3968381)				$ 26.59

    View Diagram in Separate Window       Print Part List
