SELECT A DIAGRAM

01 - Cabinet & Base


02 - Control Panel


03 - Mixing Valve And Hoses


04 - Motor, Pump And Idler Assembly


05 - Supplemental Information


06 - Top And Door Switch


07 - Transmission & Brake


08 - Tub, Inner & Outer (series 12)


09 - Tubs (inner & Outer)


10 - Wiring Information

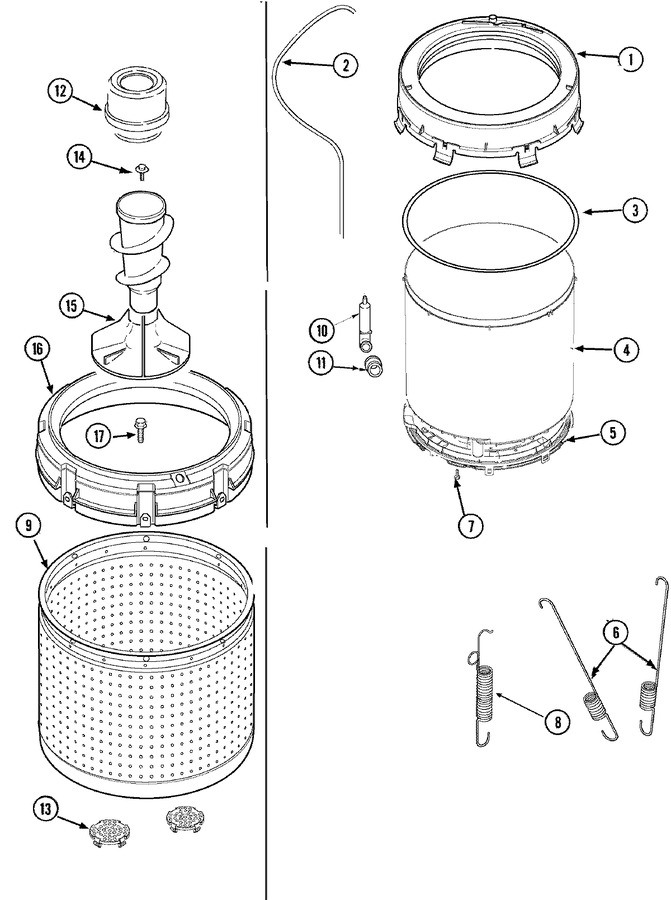

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27001132		Cover, Outer Tub W/gasket	10	Appelez-nous	-
2	27001194		Tubing, Pvc 26``	10	Appelez-nous	-
3	27001131		Seal, Tub Cover	10			$ 31.46
4	27001147		Tub, Plastic Outer	10	Appelez-nous	-
5	27001067		Bottom, Outer Tub	10	Appelez-nous	-
6	27001026		Spring, Tall Tub	10	Appelez-nous	-
7	40064301		Screw, 1/4-15x3/4 Hex	10	Appelez-nous	-
8	Y2201244		Spring, Counterweight	10			$ 39.10
9	27001150		Tub, Plastic Inner	10	Appelez-nous	-
10	COMM PART		Assembly, Pressure Bulb   (Replaces: 40008501)	10	Appelez-nous	-
11	29175		Grommet   (Replaces: 40037801)	10			$ 8.56
12	WP21001905		Dispenser, Fabric (one Piece)   (Replaces: 21001905)	10			$ 73.02
13	27001148		Filter, Lint	10	Appelez-nous	-
14	WPW10309247		Screw, Agitator Retention   (Replaces: 25-8004)	10			$ 32.57
15	WP22004042		Agitator/auger Assy (as Pk)   (Replaces: 22004042)	10			$ 277.06
16	27001149		Balance Ring Assembly	10	Appelez-nous	-
17	WPW10116787		Screw, 5/16-18x7/8 Hx   (Replaces: 40063301)	10			$ 19.26
