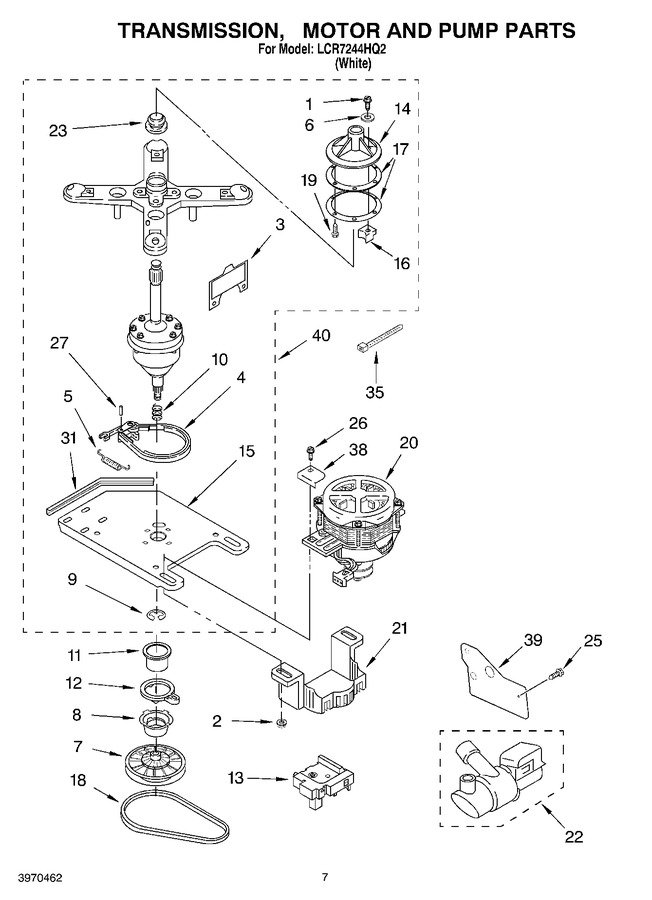

04 - Transmission, Motor And Pump Parts


05 - Suspension Parts


06 - Wiring Harness Parts


07 - Water System Parts


08 - Miscellaneous Parts - Optional Parts (not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3428430		Screw		Appelez-nous	-
2	90984		Hex Nut (2)   (Replaces: 3934662)		Appelez-nous	-
3	3967307		Shield, Motor Splash		Appelez-nous	-
4	3428323		Brake Band				$ 20.90
5	3428342		Spring, Brake		Appelez-nous	-
6	3429750		Washer		Appelez-nous	-
7	3428359		Pulley, Splutch				$ 33.87
8	3428378		Cam, Splutch				$ 35.36
9	WP354987		Snap, Ring   (Replaces: 3934678)			Immediately	$ 10.58
10	3934212		Spring, Splutch		Appelez-nous	-
11	3428380		Slider, Splutch		Appelez-nous	-
12	3428379		Cam Ring, Splutch				$ 5.51
13	3970266		Brake Actuator		Appelez-nous	-
14	3970053		Hub, Drive		Appelez-nous	-
15	3969965		Motor Plate & Bearing Asm		Appelez-nous	-
16	3428429		Saddle Block		Appelez-nous	-
17	3428179		Gasket, Hub		Appelez-nous	-
18	3934700		Drive Belt				$ 39.07
19	3934714		Screw				$ 5.27
20	3934201		Motor, Main Drive		Appelez-nous	-
21	3429190		Shield, Pulley		Appelez-nous	-
22	3970171		Pump (complete)		Appelez-nous	-
23	WP3968381		Seal   (Replaces: 3968381)				$ 26.59
25	3967955		Screw		Appelez-nous	-
26	3934663		Bolt, Motor Mounting (2)		Appelez-nous	-
27	3934183		Pin, Brake Band		Appelez-nous	-
31	3429705		Protector, Edge		Appelez-nous	-
35	WP2205813		Tie, Wire   (Replaces: 3429563)				$ 6.95
38	3430197		Shield, Motor Connector		Appelez-nous	-
39	3967958		Shield, Pump		Appelez-nous	-
40	3966743		Transmission Kit				$ 439.26
