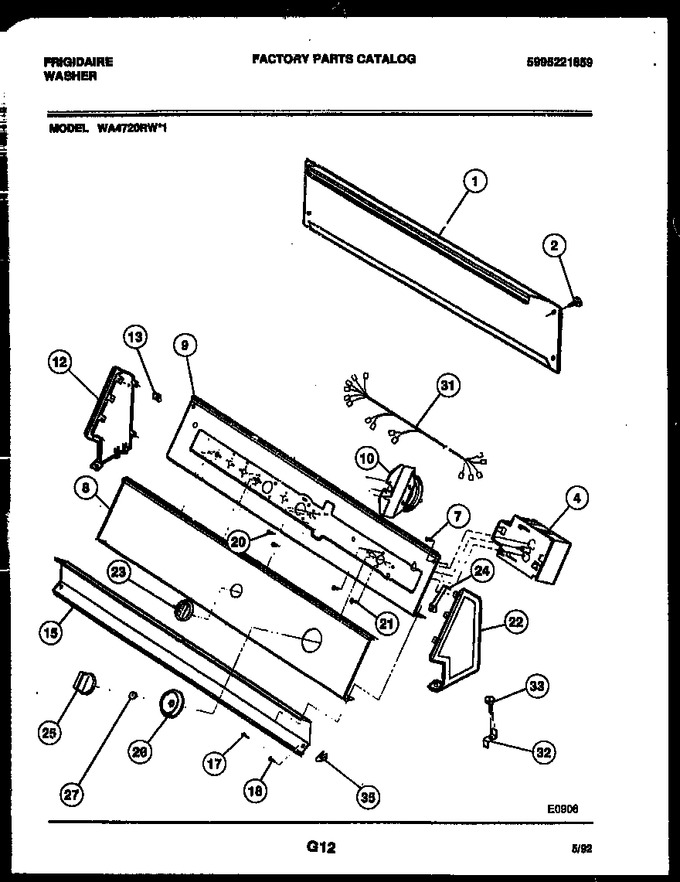

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Tub Detail
04 - Transmission Parts
05 - Console And Control Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303284440 | Backsheet |
|
- | |||||
| 2 | 5303281035 | Screw (3) |
|
- | |||||
| 4 | 5303271764 | Timer |
|
- | |||||
| 7 | 08010789 | Screw |
|
- | |||||
| 8 | 131018600 | Panel - Control |
|
- | |||||
| 9 | 5303208818 | Bracket-controls |
|
- | |||||
| 10 | 3205635 | Switch-pressure |
|
- | |||||
| 12 | 5303270198 | End Cap-lh |
|
- | |||||
| 13 | 5308014350 | Clip (8) |
|
- | |||||
| 15 | 131029300 | Trim Plate - Lower |
|
- | |||||
| 17 | 5303279341 | Screw (3) |
|
- | |||||
| 18 | 5303279343 | Screw |
|
- | |||||
| 20 | 5303161233 | Screw |
|
- | |||||
| 21 | 3161188 | Screw |
|
- | |||||
| 22 | 5303270200 | End Cap-rh |
|
- | |||||
| 23 | 5303270202 | Knob - Rotary |
|
- | |||||
| 24 | 08014349 | Ground Strap |
|
- | |||||
| 25 | 5303270203 | Knob - Timer |
|
$ 32.92 | |||||
| 26 | 5303270205 | Pointer |
|
- | |||||
| 27 | 5308015493 | Spacer - Timer |
|
$ 14.36 | |||||
| 31 | 5303286641 | Harness |
|
- | |||||
| 32 | 5379171000 | Terminal |
|
- | |||||
| 33 | 08001689 | Screw |
|
- | |||||
| 35 | 5300503065 | Nut |
|
$ 6.09 | |||||
| 31A | 5303285493 | Clip - Harness (non-illustrated) |
|
- |
