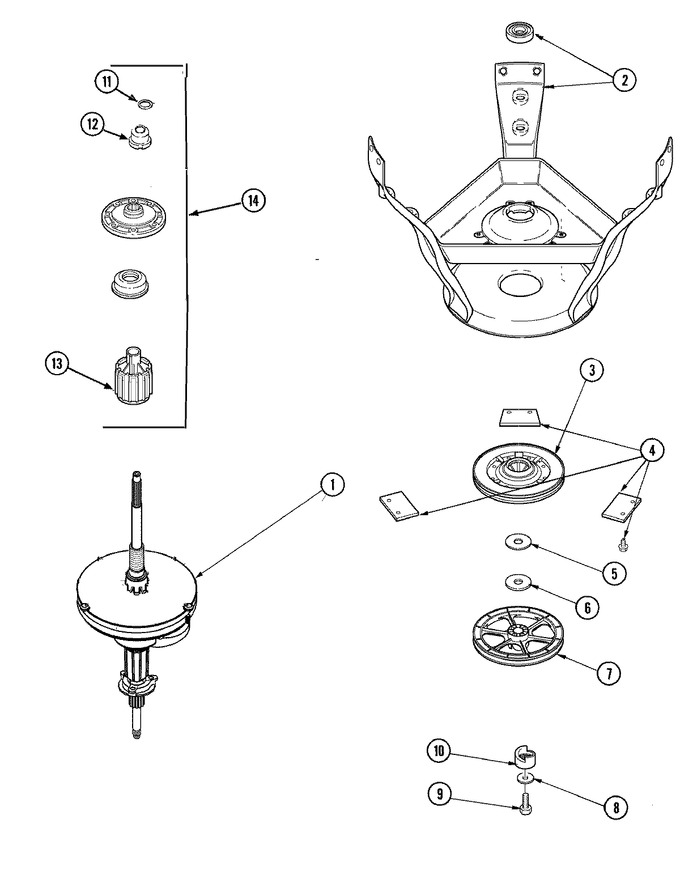

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27001035		Transmission (640 Rpm)	15	Appelez-nous	-
2	40015302P		Assembley, Milk Stool	15	Appelez-nous	-
3	R9900474		Brake Assembly	15			$ 70.70
4	WP26594P		Grease, Silicone - 2oz Tube   (Replaces: 26594P)	15			$ 75.86
4	735P3		Kit, Brake Pad   (Replaces: R0000014)	15		Immediately	$ 40.33
5	40065701		Washer, 2 Odx.63 Id	15			$ 8.22
6	40063201		Washer, Flat	15	Appelez-nous	-
7	40047202		Pulley, Spin	15			$ 48.68
8	40041501		Washer	15			$ 32.07
9	40063401		Screw, 1/4-20x5/8 Hex	15			$ 38.22
10	40047401		Helix, Plastic	15	Appelez-nous	-
11	25-7941		``o`` Ring	15			$ 5.83
12	21001533		Seal Nut Assembly	15	Appelez-nous	-
13	Y2200109		Bell, Drive	15	Appelez-nous	-
14	Y2200460		Triple Lip Seal/bearing Kit	15	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
