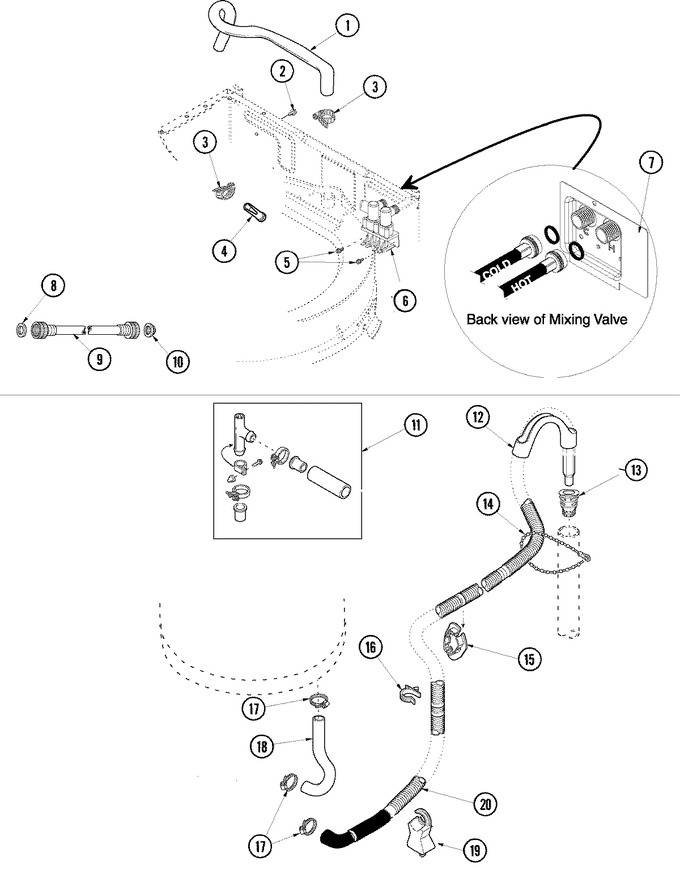

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40098901		Hose, Mixing Valve To Tub	10	Appelez-nous	-
2	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)	10	Appelez-nous	-
3	36801		Clamp, Hose	10		Immediately	$ 9.22
4	34500		Preventor, Backflow	10		Immediately	$ 6.95
5	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
6	40097701		Valve, Mixing E1	10	Appelez-nous	-
7	40098801		Plate, Mixing Value	10			$ 26.22
8	20290		Washer, 19/32 Idx1.031	10	Appelez-nous	-
9	W11629055		Hose, Water Inlet (cold)   (Replaces: 40058002)	10			$ 24.93
9	W11629055		Hose, Water Inlet (hot)   (Replaces: 40058001)	10			$ 24.93
10	28605		Washer, Filter	10	Appelez-nous	-
11	76660		Siphon Kit   (Replaces: 562P3)	10		Immediately	$ 119.93
12	33615		Sleeve, Drain Hose	10			$ 8.35
13	40008101		Adapter, Standpipe	10			$ 84.69
14	M0321208		Strap, Standpipe-beaded	10	Appelez-nous	-
15	40058501		Relief, Strain Drain	10			$ 35.53
16	36014		Clip, Retainer-hose	10			$ 6.95
17	WP285655		Clamp, Hose   (Replaces: 36802)	10		Immediately	$ 7.55
18	40094201		Hose, Tub To Pump	10			$ 21.92
19	40044901		Stand, Hose	10	Appelez-nous	-
20	WP40053901		Hose, Drain   (Replaces: 40053901)	10		Immediately	$ 61.94
