SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports

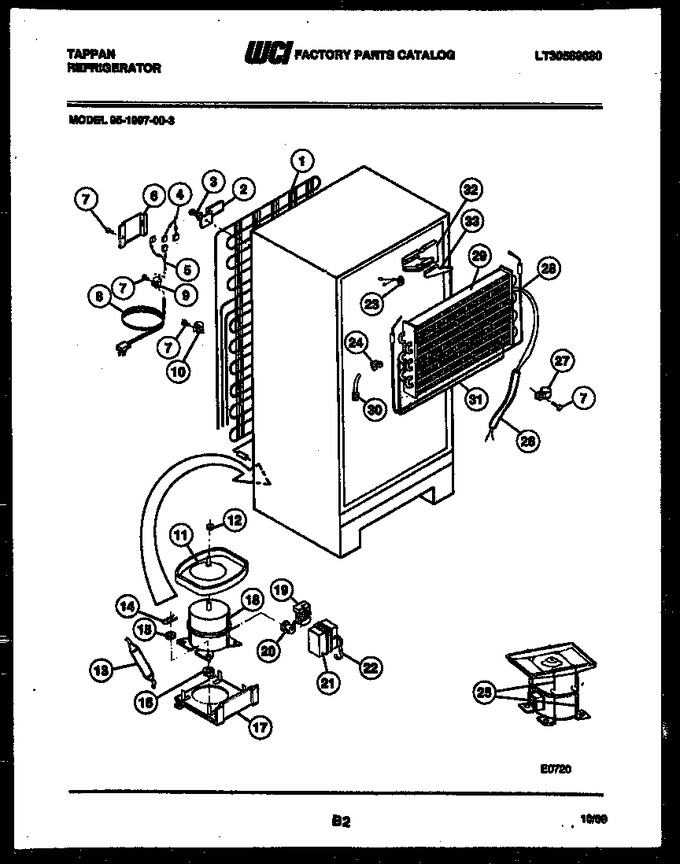

05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3001497		Condenser		Appelez-nous	-
2	3001195		Bracket-cond Mtg (4)		Appelez-nous	-
3	3001194		Screw-bracket (4)		Appelez-nous	-
4	3001383		Wiring Harness-control		Appelez-nous	-
5	3001347		Wiring Harness-compr		Appelez-nous	-
6	3001197		Cover, Wiring		Appelez-nous	-
7	3001343		Screw-8-15 X 1/2		Appelez-nous	-
8	3001200		Service Cord		Appelez-nous	-
9	3001199		Clamp-cable (3)		Appelez-nous	-
10	08000133		Clamp		Appelez-nous	-
11	08012951		Pan-defrost		Appelez-nous	-
12	3001348		Lock Nut-pan Mtg		Appelez-nous	-
13	08000027		Drier-filter		Appelez-nous	-
14	3001350		Clip (4)		Appelez-nous	-
15	3001351		Washer (4)		Appelez-nous	-
16	3001203		Grommet (4)		Appelez-nous	-
17	3001462		Plate-compr Mtg		Appelez-nous	-
18	3916020		Compressor W/ Electricals		Appelez-nous	-
19	216594300		Relay   (Replaces: 3204486)				$ 28.92
20	3204487		Overload		Appelez-nous	-
21	3006411		Cover-terminal		Appelez-nous	-
22	3006412		Strap-term Cover		Appelez-nous	-
23	3001363		Thermostat, Defrost		Appelez-nous	-
24	3001684		Insulation Block Ls		Appelez-nous	-
25	3916001		Pan Retainer Kit		Appelez-nous	-
26	08000728		Heat Exchanger		Appelez-nous	-
27	08000133		Clamp		Appelez-nous	-
28	3001466		Heater-defrost		Appelez-nous	-
29	08000062		Evaporator		Appelez-nous	-
30	08000110		Strap-evap/heater (2)		Appelez-nous	-
31	5303206601		Insulator-evap		Appelez-nous	-
32	3001360		Insulation Block Rs		Appelez-nous	-
33	3007287		Insulation Plug Rs		Appelez-nous	-
*33088	09960001		Hot Tube Repair Kit		Appelez-nous	-
11A	08017610		Sound Tape (non-illustrated)		Appelez-nous	-
2A	3017691		Spacer-tube (3) (non-illustrated)		Appelez-nous	-
2B	08009617		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
